CNC milling machinesVISCOM 3X

VISCOM 3X 3-axis CNC milling machine/ Aplications

/ Materials

Description

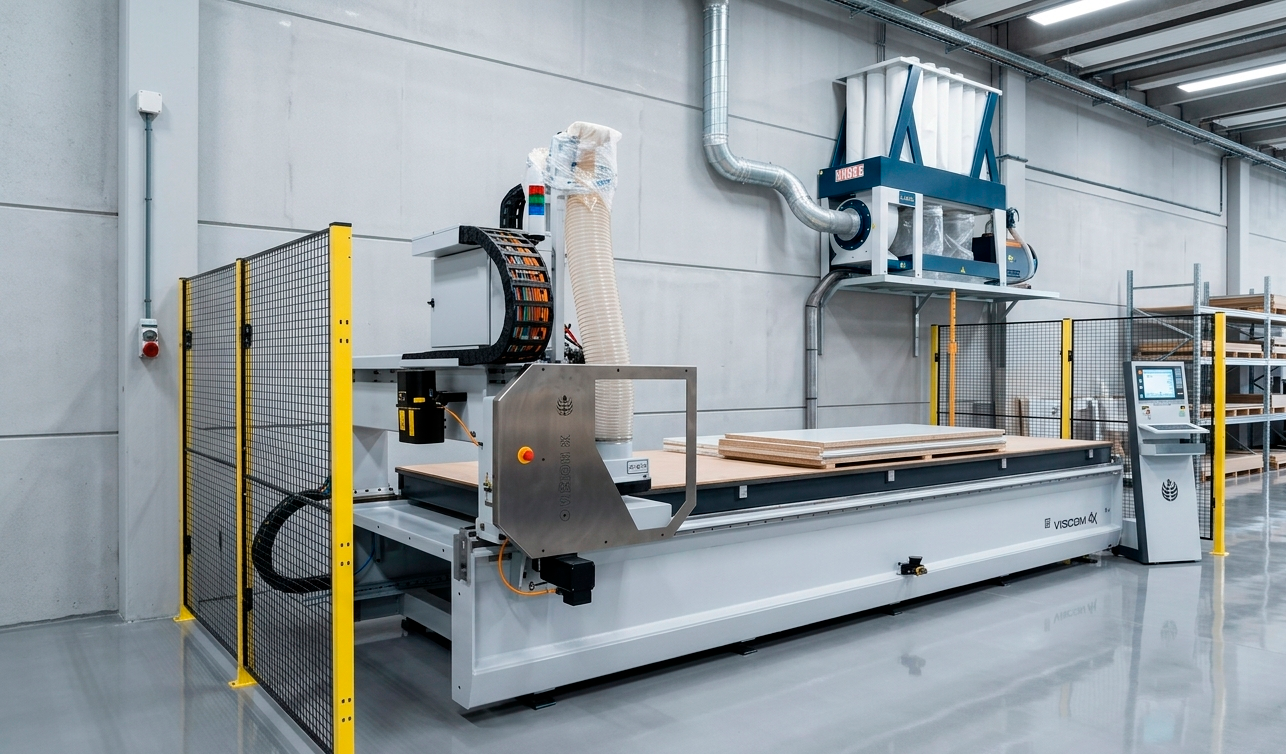

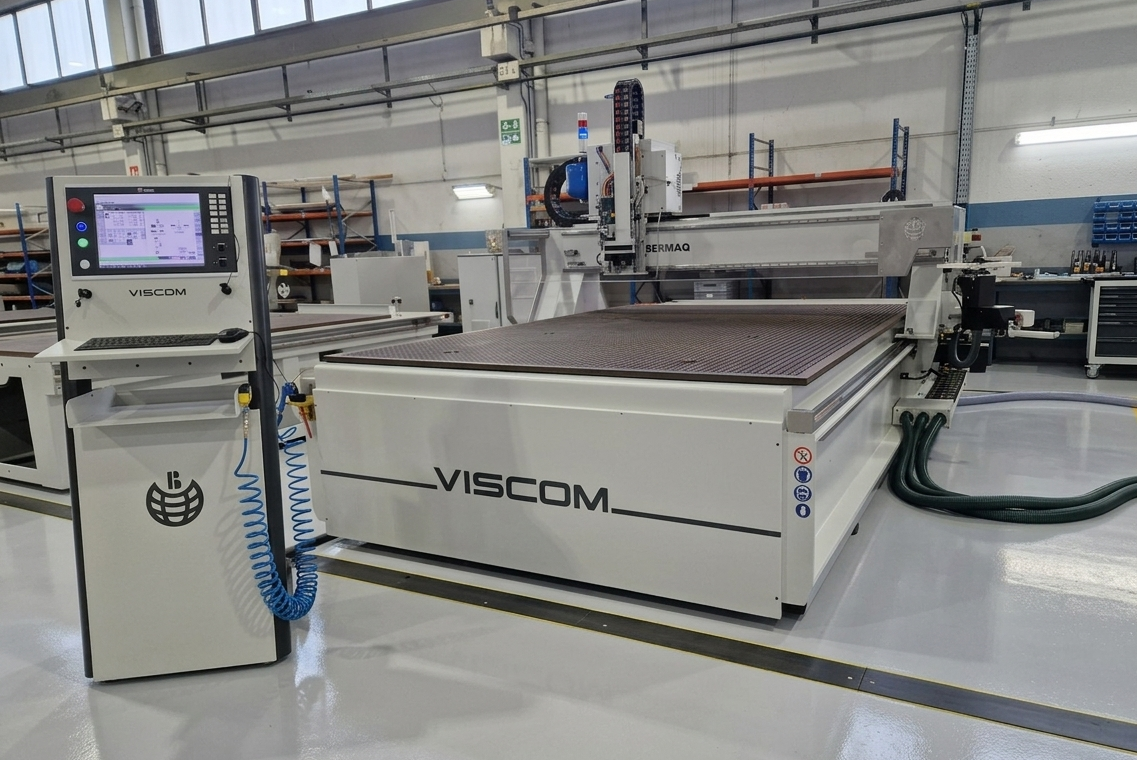

VISCOM 3X 3-axis CNC milling machine

The VISCOM 3X is a moving-bridge CNC milling machine designed for machining, cutting, engraving, and grinding non-ferrous materials in industrial production environments. Engineering plastics, methacrylate, wood, aluminum, composites, and resins are just some of the materials this machine processes with precision and consistency.

With a spindle power of between 8 and 15 kW in ISO30 or HSK-F63, automatic tool change, and an integrated vacuum system, the VISCOM 3X is designed to handle continuous production cycles without compromising finish quality. Its modular architecture allows for precise configuration to meet the requirements of each production process.

Technical characteristics VISCOM 3X

Axes

Structure

Mobile bridge

Working area

3,100, 4,100, 5,100 ... x 2,050 x 250 mm

Milling head

8kW to 15 kW at ISO30 or HSK-F63

Rated speed

12,000 rpm

Maximum speed

24,000 rpm

Vacuum pump

290 m³ / h or 1,000 m³ / h Super turbine

Tool changer

8-position revolver or linear 10-position revolver

Tool setter

✔️

Workpiece clamping system

Vacuum system (slotted table)

Control panel

Mobile

Cooling system

Liquid or air

Worktable

Phenolic resin or micro-perforated aluminium table top

Positioning speed

X: 55 m/min - Y: 55 m/min - Z: 33m/min

Lubrication

Automatic

Transmission

X,Y: Pinion-gear / Z: Spindle

* Recommended values with option to modify

A VISCOM 3X is a mobile CNC milling machine designed for the use, cutting, engraving and refining of non-ferrous materials in industrial production environments. Engineering plastics, methacrylate, wood, aluminum, composites and resins are just some of the materials that this machine processes with precision and consistency.

With a fuse power between 8 and 15 kW with ISO30 or HSK-F63, automatic tool exchange and an integrated vacuum system, a VISCOM 3X was designed to operate with continuous production cycles without compromising the quality of the finish. Its modular architecture allows precise configuration to meet the requirements of each production process.

VISCOM 3X Milling Machine Equipment

Built for intensive production and durability

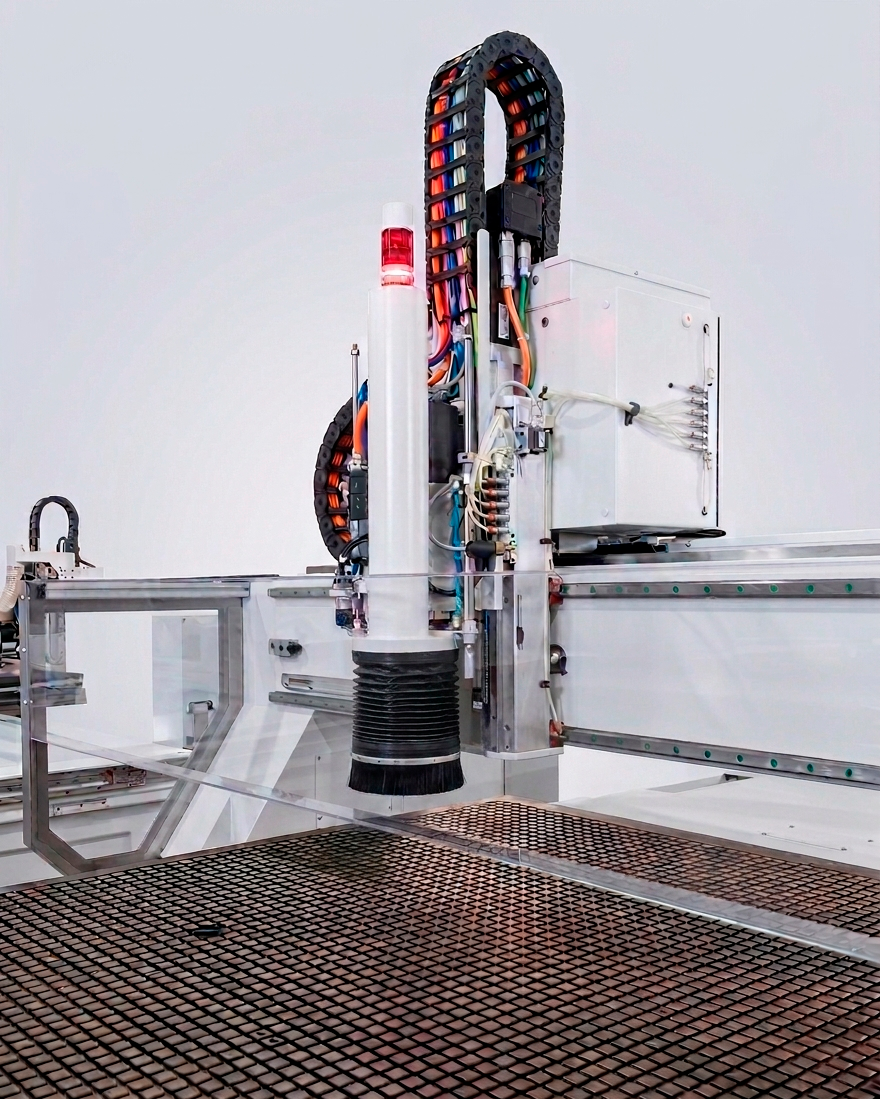

The VISCOM 3X incorporates recirculating ball screws that guarantee precise positioning and repeatability between cycles. Its moving bridge structure absorbs the dynamic loads of high-speed machining, extending tool life and ensuring process stability during continuous operation.

Adaptable to any production process

The compact and modular design facilitates the integration of the machine into existing production lines and allows for expanding its capabilities through specific options. Each unit can be custom-configured according to the required materials, speeds, and finishes.

Features of the VISCOM 3X Milling Machine

Higher machining speed without loss of precision

Nominal speed of 12,000 rpm and maximum speed of 24,000 rpm, with power from 8 to 15 kW in ISO30 or HSK-F63 taper. Consistent performance in roughing and finishing operations on materials of varying hardness.

Fewer stops, more parts per shift

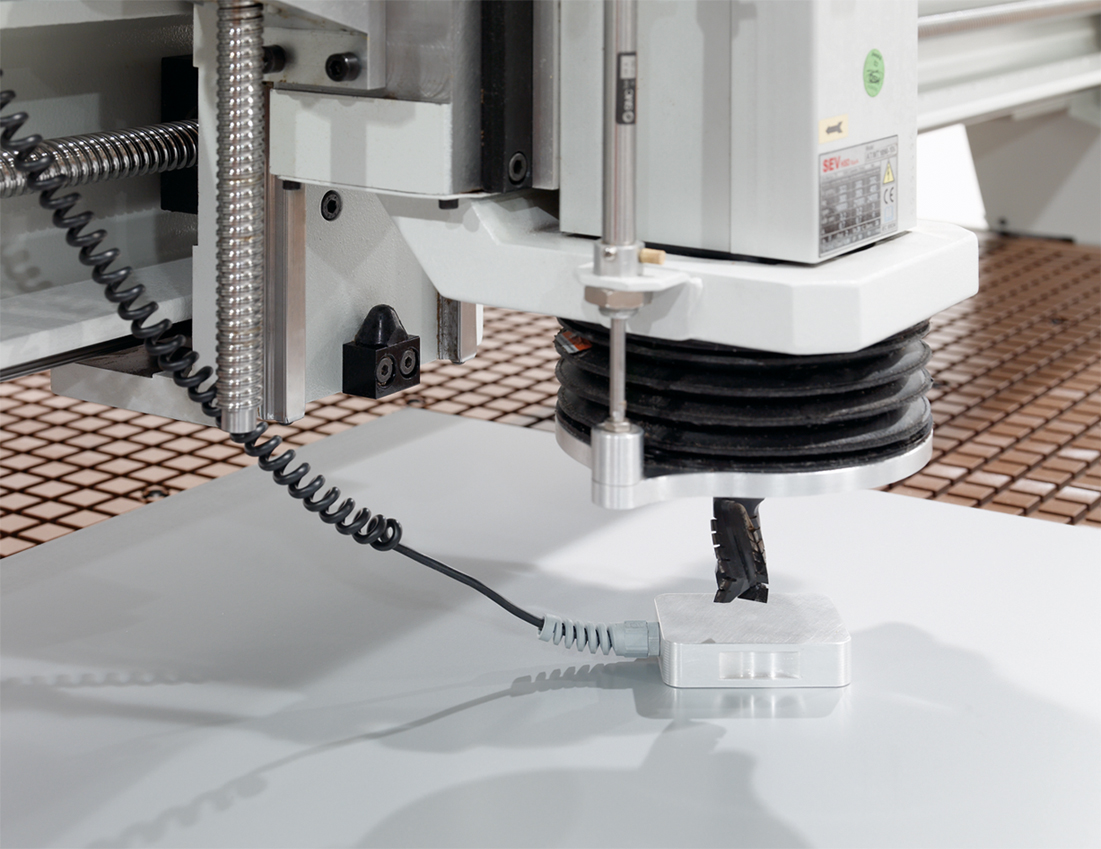

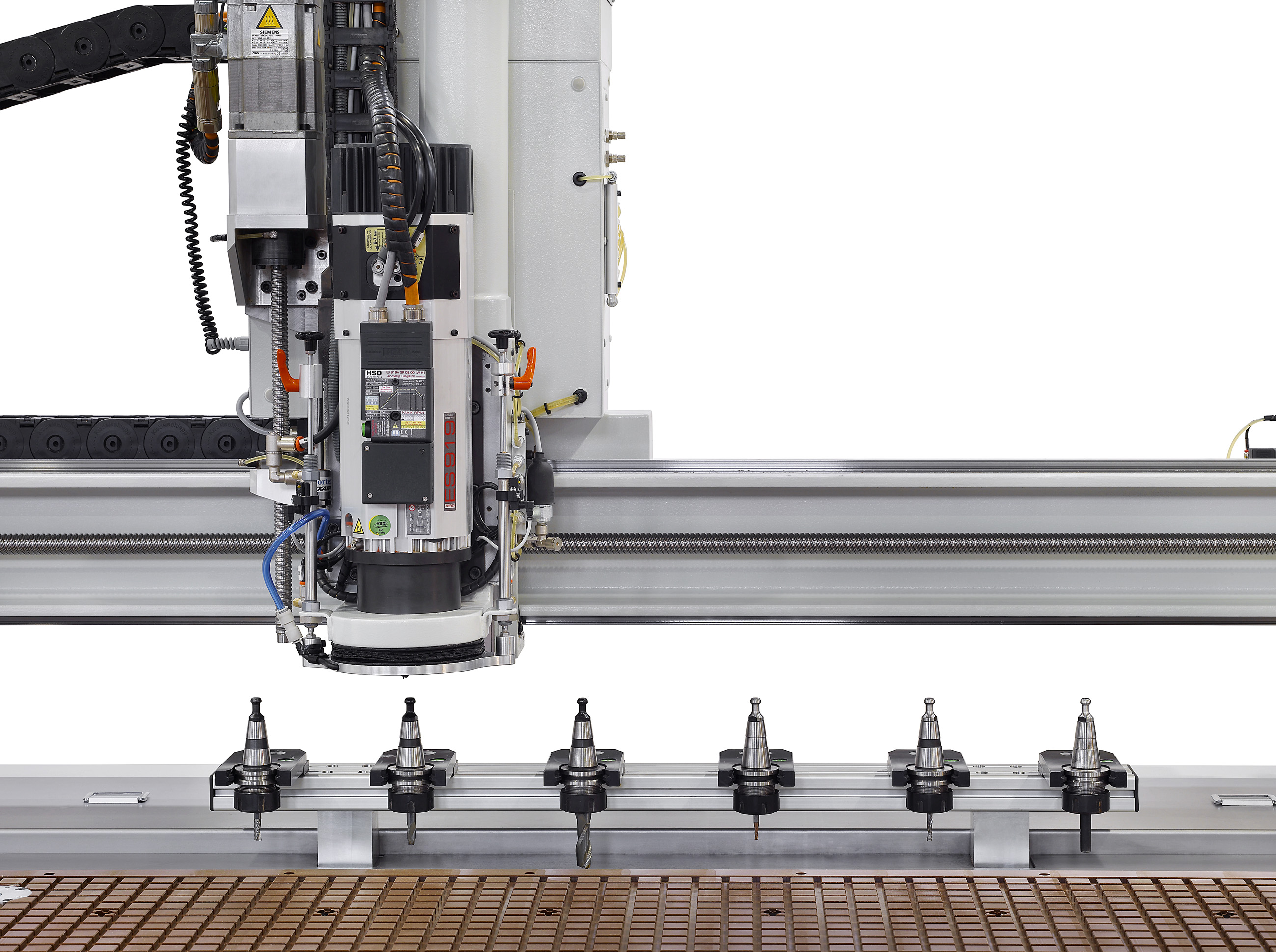

8-position turret or 10-position linear tool changer with automatic tool calibration. Sequencing of operations without operator intervention and reduction of unproductive time between cycles.

Secure clamping without additional tooling

290 m³/h vacuum pump or 1,000 m³/h super turbine on a slotted table of phenolic resin or micro-perforated aluminum. Stable workpiece clamping in most work formats without the need for external clamping elements.

Guaranteed repeatability in every cycle

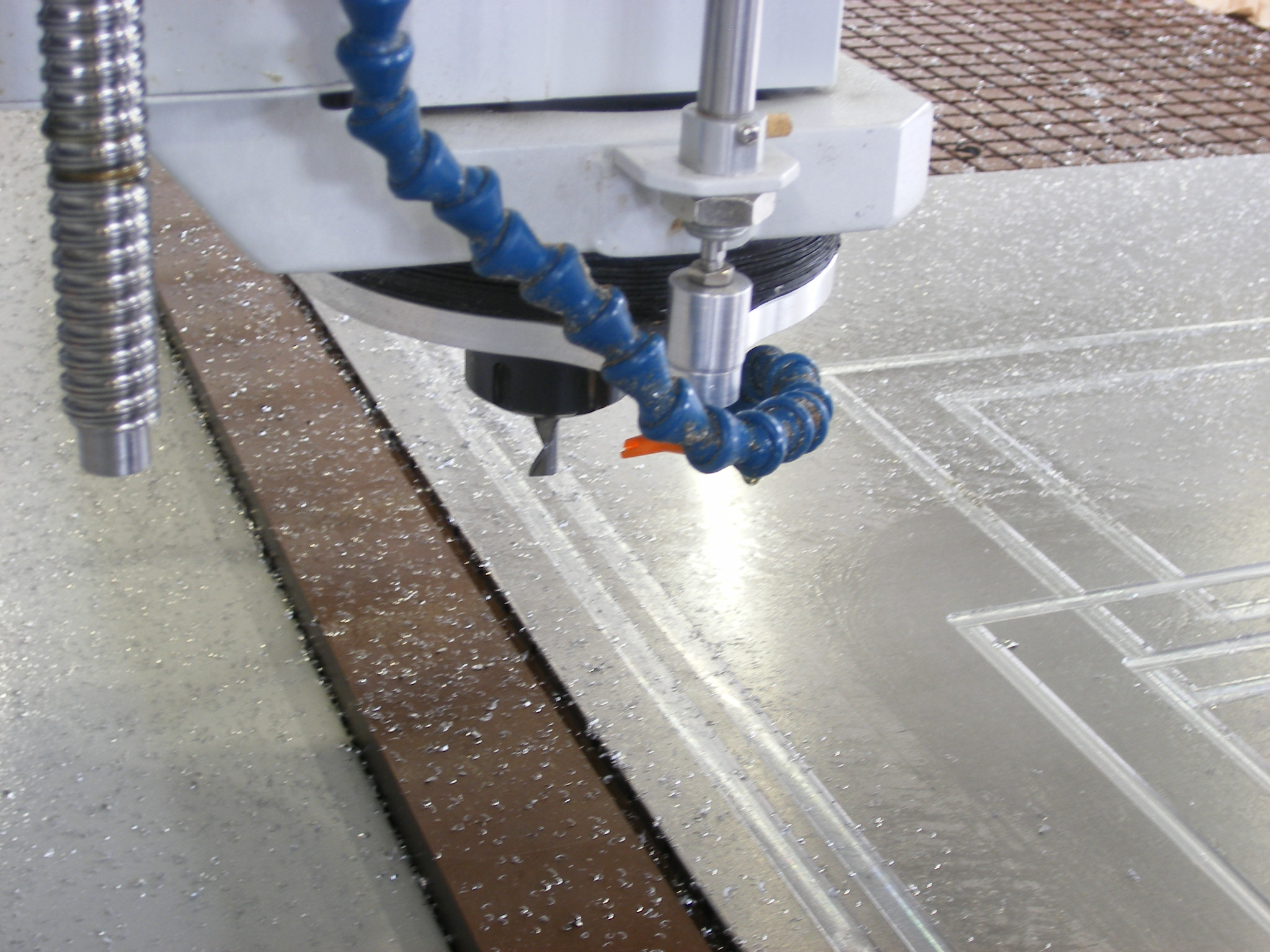

Rack and pinion transmission in X and Y, lead screw in Z. Positioning speeds of 55 m/min in X and Y and 33 m/min in Z. Automatic lubrication on all axes and liquid or air cooling depending on the configuration.

Greater process control from any point

Movable control panel that allows monitoring and operation of the machine from different positions in the work area, optimizing loading, unloading, and adjustment times without unnecessary movement.

VISCOM 3X Milling Machine Options

Expand performance according to your production requirements

Retractable table stops
Air conditioning in electrical cabinet
2 independent work areas
Pneumatic sockets
Air/liquid tool cooling (VIP4tools)
Cold air tool cooling (VORTEX)
High-precision ball screw drive
C-axis
Added disc on C-axis for plate cutting

Comparative table

Ask for budget

/ More information

Materials compatible with the VISCOM 3X milling machine

One machine for multiple materials and processes

The VISCOM 3X is optimized for machining non-ferrous materials in industrial production. Its combination of structural rigidity, head speed, and vacuum system allows for reliable work on a wide range of materials without changing equipment:

Technical plastics: PVC, polystyrene, nylon, PETG, and derivatives
Acrylic and methacrylate: cutting and engraving with optical finishing
Wood and derived boards: MDF, plywood, solid wood
Aluminum and light alloys: profiles, sheets, and machined parts
Composites and laminates: fiberglass, carbon, Alucobond, Corian
Technical foams and resins: modeling, casting, and prototyping

Precision engineering applied to production Industrial

Validated design for demanding environments

The VISCOM 3X is the result of a rigorous engineering process: 3D parametric design with motion simulation, finite element structural analysis, and validation against vibrations and overloads. This methodology guarantees that every unit leaving the factory performs exactly as calculated.

Its electro-welded and stabilized steel structure, combined with ball bearings on prismatic rails and brushless servomotors on all axes, ensures constant precision cycle after cycle, even during continuous operation.

Reliability that lasts over time

The automatic lubrication system, the 290 m³/h BUSCH MINK vacuum pump, and the 400 V AC / 50 Hz electrical installation form a system designed to minimize maintenance interventions and maximize machine availability. The VISCOM 3X complies with applicable CE directives and ISO standards, with all the safety systems required for use in industrial environments. A configurable solution, not a standard product. Each VISCOM 3X can be adapted to the specific conditions of each installation: table size, tool configuration, cooling system, and production options. BERMAQ accompanies the process from technical definition to commissioning, ensuring that the machine is precisely integrated into every production process.

10 Reasons to Choose the VISCOM 3X

High Precision: Designed for jobs requiring millimeter accuracy and high-quality finishes in continuous production.
Material Versatility: Plastics, non-ferrous metals, woods, composites, and resins in a single machine.
High Operating Speed: High-performance motors that significantly reduce cycle and production times.
Advanced Control Software: Intuitive programming that facilitates the precise execution of complex geometries.
Precision Numerical Control: CNC system that guarantees consistent and repeatable results every time. Operation.
Robust and durable structure: Electrowelded and stabilized steel designed to withstand the most demanding working conditions.
Simple operation: Intuitive user interface accessible to operators of varying experience levels.
Certified safety: Emergency stops, overload protection, and compliance with CE directives and ISO standards.
Minimal maintenance: Automatic lubrication and accessible design reduce downtime and maintenance costs.
Custom configuration: Table size, tooling, cooling, and options tailored to each production process.
