Description
Automatic continuous bending machine for POP
The DA is the automatic thermoplastic bending machine in the BERMAQ Automatic Plastic Bending Machines range, created to replace manual bending with continuous production. Its hot-wire and conveyor belt system folds parts "on the fly", with no downtime, in PVC, PETG, polystyrene and acrylic sheets up to 0.8 mm thick.
With an automatic feeder, a digital part counter and an HMI touchscreen, it reaches up to 5,000 parts/hour depending on sheet size. An investment designed for manufacturers supplying stoppers, shelf price dividers, promotional holders and displays to the HoReCa, retail and mass-market sectors.
Technical characteristics DA
Industrial bending machine
Automatic
2
Underneath
SÍ
❌
700 mm
up to 0.8 mm
230 V
1.4 kW
2.600 X 1.100 X 1.920 mm
170
❌
Applications of the DA bending machine
Point-of-sale POP produced continuously
The DA has been designed for the visual communication sector and for manufacturing all kinds of POP material. Its continuous production makes it possible to respond quickly to both long runs and customised orders:
Pricing and promotions: stoppers, shelf price dividers, promotional holders, impulse strips and shelf banners for the aisle.
Shelf organisation: shelf trays, separators and shelf dividers that keep products tidy at the point of sale.
Displays and stands: display bases, small merchandising stands, poster holders, menu holders and brochure or flyer holders.
Continuous folding parts: corner pieces and zigzag or U-shaped folded profiles for point-of-sale visibility solutions.
Automation and control of the DA bending machine

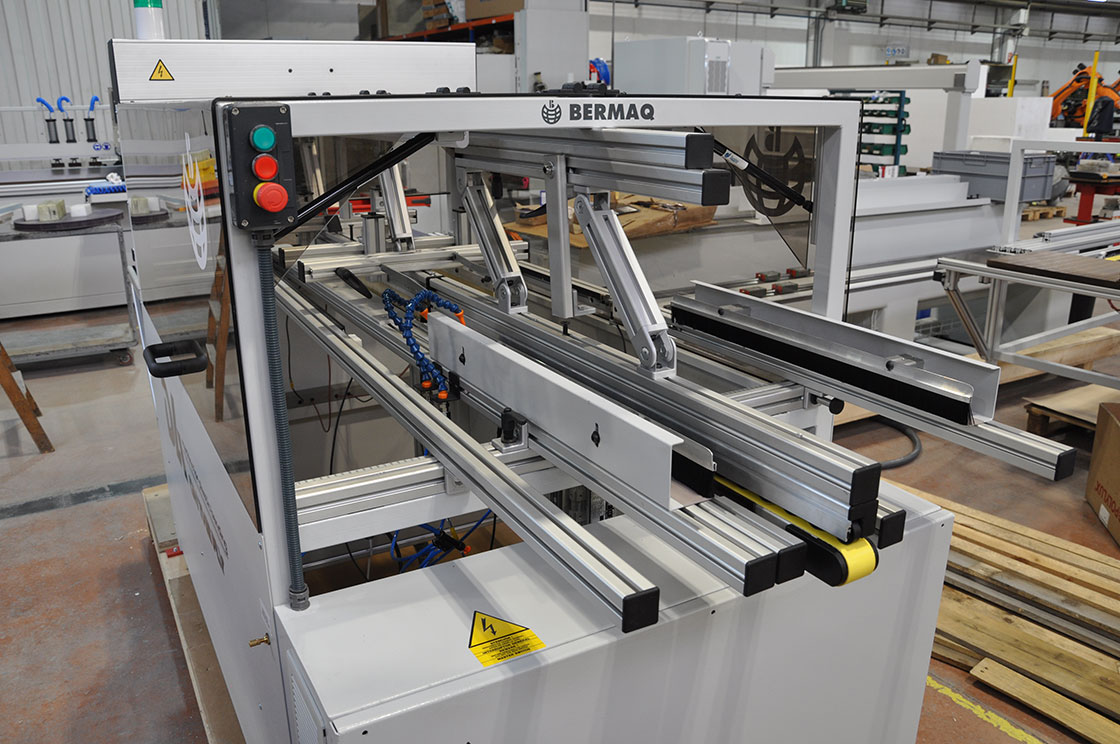

Hot wire and conveyor belt for folding "on the fly"
The part travels along the belt while two independent heating elements, governed by high-precision digital controllers, heat the fold line within a range of 0 to 150 °C. The thermal precision of the hot wire ensures clean, uniform bend lines without marks, and a part cooling system completes the process.
60 kg automatic feeder with counter and stop
The automatic part feeder, holding up to 60 kg of sheets, keeps the machine running without interruption. The digital part counter with stop function halts production once the programmed quantity is reached, and a visual indicator shows ON, OFF and obstacle status.
One or two folds per cycle, from 0° to 180°
The DA can make one or two folds at different angles within the same cycle, over a range of 0° to 180°, as well as continuous zigzag or U folds. This considerably widens the design possibilities for your customers' parts.
HMI touchscreen with storable recipes
The touch control screen manages heater temperature, the part counter and the display of the conveyor belt, which runs at 12 to 30 m/min. Storable recipes let you recall the settings of each item for the next run.

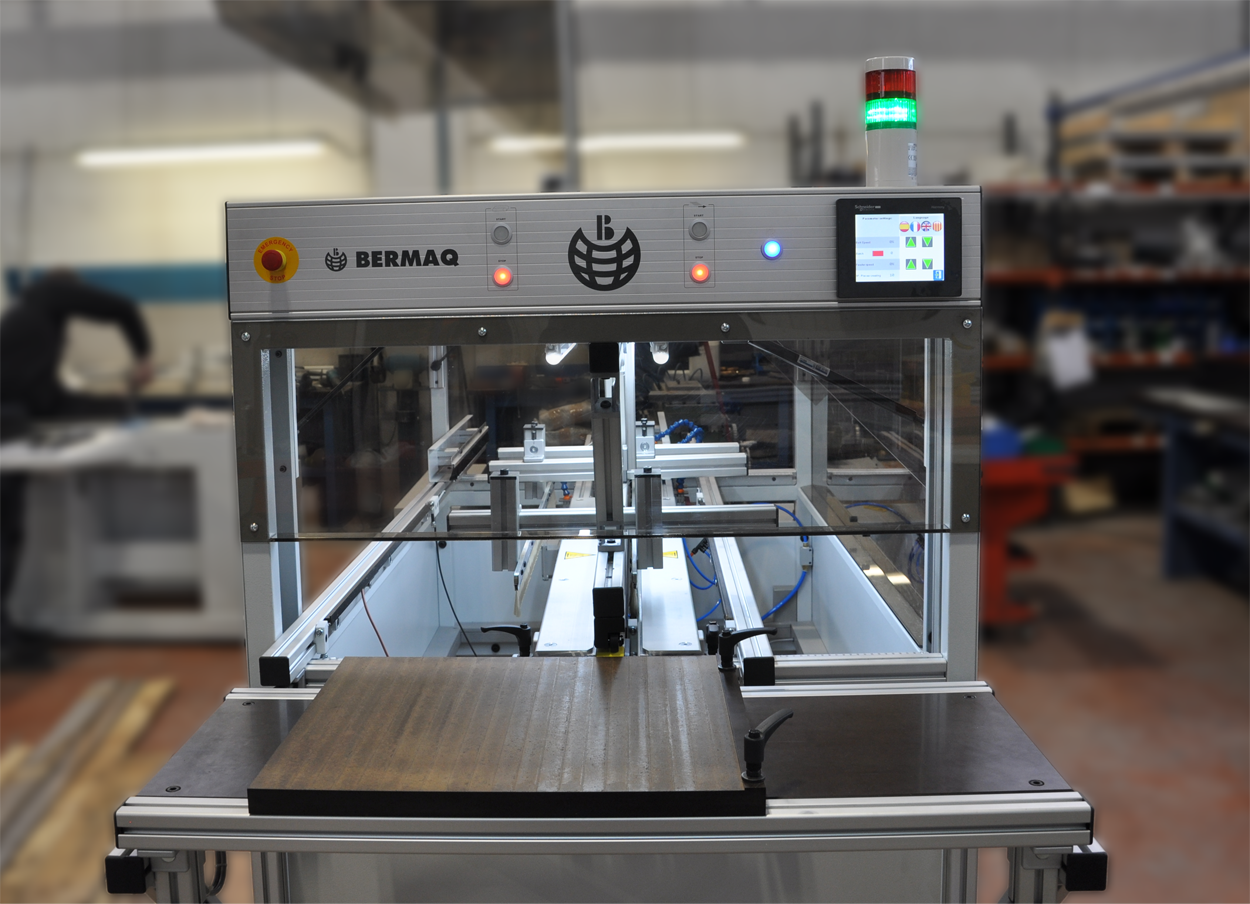

Industrial design of the DA bending machine
Enclosed housing with polycarbonate screens
The DA stands out for its closed, cabin-type structure and modern design, with guards for all internal components. Polycarbonate protective screens on both sides of the machine complete a unit designed for demanding production environments.
Built for high volumes with less labour
By automating a historically manual process, the DA increases production capacity, reduces dependence on skilled labour and minimises human error. A robust, efficient and profitable system for companies that need to shorten delivery times.
230 V connection and 1.4 kW power
The machine runs on 230 V, 50/60 Hz, with a total power of 1.4 kW. Measuring 2,600 x 1,100 x 1,920 mm and weighing 170 kg, it fits into the workshop as a complete bending line.
Configure the DA bending machine for every part format
Feeding, speed and recipes tailored to each order
Automatic feeding: unfolded sheets up to 450 mm wide for long runs without operator intervention.
Manual feeding: extends the maximum unfolded sheet width to 700 mm for special formats.
Adjustable belt speed: from 12 to 30 m/min to match the pace to the material and the part geometry.
Recipes on the HMI screen: each item is saved and recalled for the next run without readjusting parameters.
Comparative table
Ask for budget
Materials compatible with the DA bending machine
Thermoplastic sheets up to 0.8 mm thick
The DA processes a wide variety of thermoplastics and adapts to different thicknesses, formats and geometries:
PVC: precise folding of sheets for shelf trays, impulse strips, stoppers and shelf banners.
PETG: price holders and promotional holders with clean, mark-free fold lines.
Polystyrene and styrene: display bases and POP parts for large runs.
Acrylic: poster holders, menu holders and brochure holders with a refined aesthetic finish.
From manual bending to "on the fly" production with the DA
Traditional manual folding depends on the operator's skill and limits daily output. The DA transforms this process: the conveyor belt and the hot wire fold the part while it moves, eliminating downtime and drastically reducing manual intervention. With an output of up to 5,000 parts/hour depending on sheet size, every order is completed with absolute quality and repeatability.
Which companies is the DA bending machine for
The DA is designed for manufacturers supplying folded plastic parts to the HoReCa, retail and mass-market sectors, and for industrial environments that demand high workloads, cost reduction and continuous improvement in delivery times. Unlike other models, it shortens manufacturing times and simplifies the workflow while always maintaining bending quality.
BERMAQ Automatic Plastic Bending Machines range and after-sales support
The DA belongs to the BERMAQ Automatic Plastic Bending Machines range. BERMAQ advises each customer on process definition, commissioning and operator training. The after-sales department, with a network of specialist technicians working locally and globally, offers constant, personalised service and the option of a preventive maintenance contract to extend the machine's service life.
