Bending machinesHR 125

Name: Dobladora de termoplásticos HR 125
Brand: BERMAQ
Availability: InStoreOnly

HR 125 Tabletop Thermoplastic Bending Machine/ Aplications

/ Materials

Description

HR 125 Tabletop Thermoplastic Bending Machine

The HR 125 is BERMAQ's thermoplastic bending machine designed for larger-scale projects without sacrificing its compact benchtop design. With a working length of 1,250 mm, it bends the same format as the HR 50 and is aimed at professionals who need to bend wide sheets with the same precision and repeatability that characterize the HR range.

Equipped with a single-line bottom heating system and electronic temperature control, the HR 125 allows for customized conditions. Its work surface is heat and scratch resistant, and it incorporates an adjustable parallel back gauge and two rules to guarantee accurate bends in every operation.

Technical characteristics HR 125

Model type

Tabletop machine

Bending method

Manual

Bending lines

Single line

Heating method

Lower only

Under heating

1 line

Modular extendable

❌

Construction

With parallel stop

Working length

1.250 mm

Working thickness

1 – 6 mm

Connection voltage

230 V

Electrical use

500 W

Dimensions (LxWxH)

1.350 x 560 x 105 mm

Weight

30 Kg

Upper heating

❌

Distance between 2 curves

* Recommended values with option to modify

Applications of the HR 125 Bending Machine

The HR 125's longer working length opens up a range of applications requiring large-format bending with professional finishes.

Large-Format Signage, Labels, and Displays

The HR 125 bends acrylic or PVC in widths exceeding the capacity of smaller-format bending machines. Ideal for signage companies working with standard-sized pieces in serial production.

Acrylic Interior Design and Furniture

Suitable for manufacturing furniture, partitions, shelving, and decorative elements in acrylic or polycarbonate. The 1,250 mm working length facilitates the bending of structural panels requiring a precise angle and a flawless finish.

Prototyping and Industrial Models

Used in the creation of functional prototypes and test models for electrical engineering projects, industrial design, and the manufacture of technical parts.

The precision of the folding and the ease of adjustment make it especially valued in R&D departments and technical schools.

Production of industrial plastic components

The HR 125 is suitable for the mass production of plastic components for various industries: protective covers, enclosures, boxes, and structural parts in thermoplastic.

Crafts and large-scale creative projects

Craftspeople, designers, and creators working with large formats find in the HR 125 the necessary capacity to fold sheets in a single pass, without seams or irregularities in the sheet.

HR 125 Folder Operation

Single-Line Bottom Heating for Deformation-Free Folds

The HR 125 operates with an exclusively bottom heating system, integrated into a single 1,250 mm line. The filament is height-adjustable to adapt the heating distance to the thickness and nature of each material, ensuring uniform heat transfer along the entire fold.

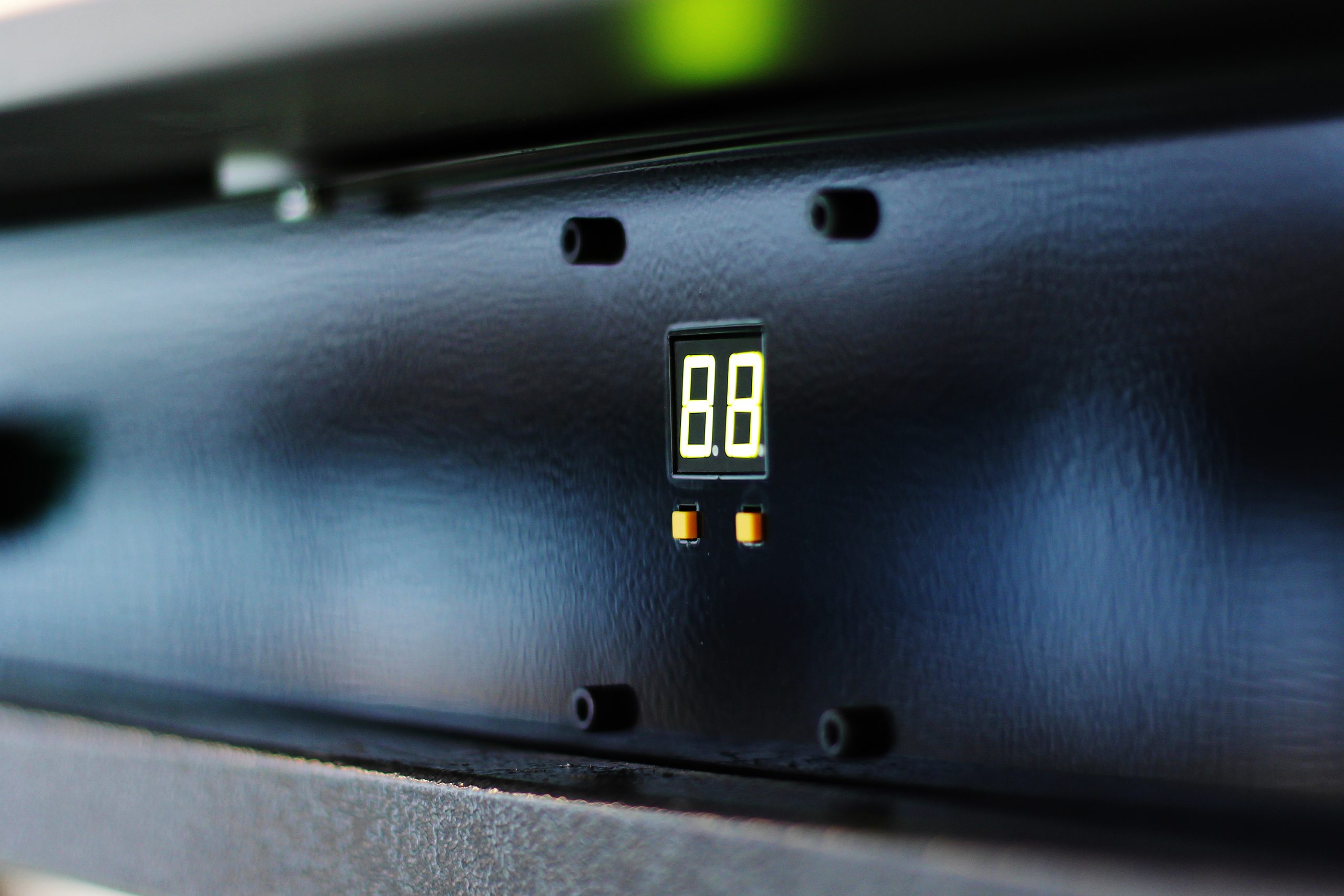

Electronic Temperature Control for Consistent Results

The filament temperature is electronically regulated with high precision, allowing for adjustment of working conditions for each material.

This capability is key to maintaining folding quality in repetitive production runs and to preventing damage to materials sensitive to temperature variations.

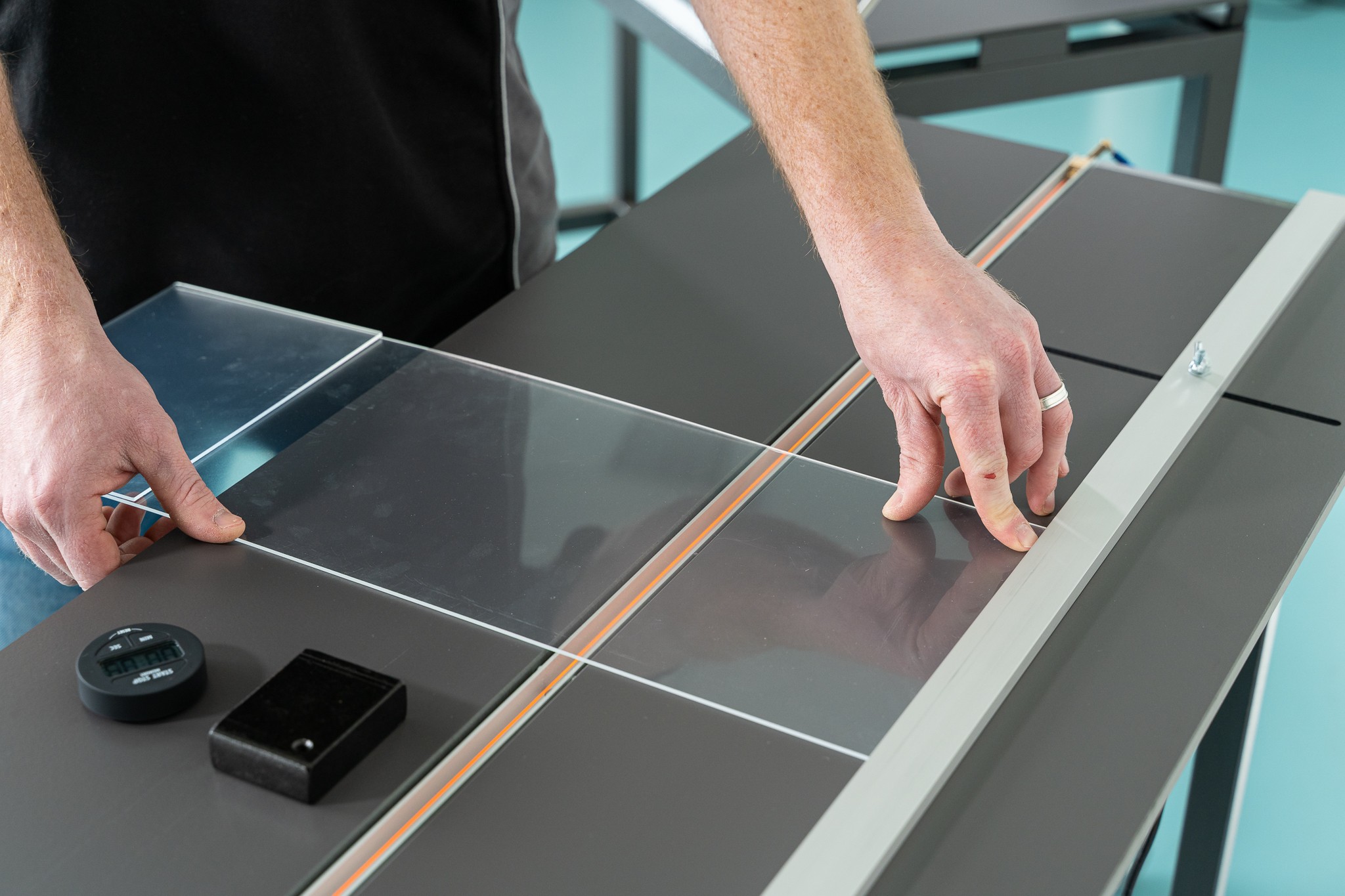

Parallel back gauge and 2 rules for precise positioning

The adjustable parallel back gauge and 2 integrated rules allow for precise sheet positioning without the need for manual calibration between pieces.

HR 125 Bending Machine Construction

Robust structure for large formats without loss of rigidity

Despite its tabletop design, the HR 125 features a solid construction that guarantees a robust 1,250 mm working beam. Weighing 30 kg and with dimensions of 1,350 × 560 × 105 mm, it maintains the necessary rigidity for precise folding along its entire length, even under intensive use. A surface that protects both the machine and the materials being handled.

Compatibility with a special bending profile for very thin sheets

Like the rest of the HR range, the HR 125 accepts the installation of a special bending profile for working with thick sheets. This option makes it suitable for high-precision applications where the material is particularly delicate.

Materials compatible with the HR 125

The HR 125 bending machine works with a wide range of thermoplastics and acrylic materials, in thicknesses from 1 to 6 mm:

Methacrylate (PMMA): The HR 125 offers clean, mark-free bending in large formats.
Polycarbonate (PC): Durable and transparent, widely used in protective and technical components; the HR 125 bends it with precise temperature control.
PVC: Standard in the plastics industry; compatible in various hardnesses and colors, with clean, angular finishes.
Polystyrene (PS): Found in packaging, displays, and lightweight parts; It folds easily and has good surface finishes.
Polypropylene (PP): technical material with good chemical and mechanical resistance, compatible with the HR 125 working range.
PET: polyester; suitable for lightweight structural components.
PMMA and other acrylics: fully compatible with the most common acrylic variants used in advertising, design, and architecture.

Configure the HR 125 for your production

Special folding profile for thin materials

The special folding profile accessory allows you to work with very thin sheets that could deform or break with standard filament. A recommended option for precision applications in fine prototyping, high-quality signage, or decorative pieces.

HR range accessories to adapt the machine to your process

The HR 125 is compatible with the BERMAQ range of accessories for HR family bending machines. Consult our technical team about the available options to expand the machine's capabilities and adapt it to the specific requirements of your industry.

Comparative table

Ask for budget

/ More information

HR 125 Bending Machine for Acrylic and Thermoplastics

The HR 125 is BERMAQ's offering for professionals who need the precision and quality of the HR range in a larger capacity format. With a working length of 1,250 mm, it meets the demands of sign workshops, interior design companies, display manufacturers, and industrial departments that regularly work with standard or large-format sheets.

More length, same precision: the HR 125 vs. the HR 50

<2 The HR 125 offers the same working length, but doubles its bending capacity. The same single-line bottom heating technology, electronic temperature control system, and parallel stop and adjustment rules are transferred to a 1,250 mm machine that doesn't sacrifice either precision or ease of use.

More length, same precision: the HR 125 vs. the HR 50

<2 For those already familiar with the HR 50 and needing greater length, the HR 125 is the natural evolution.

A versatile machine for industry, design, and education

The HR 125 is equally suitable for a wide variety of environments: from technical schools and engineering departments, where it is used for practical exercises, to reliable benchtop training for serial production. Its versatility in handling materials, ease of adjustment, and compact design make it a machine that adapts to almost any production context involving thermoplastic bending.

BERMAQ manufacturing and quality

Like the rest of the HR range, the HR 125 is manufactured and distributed by BERMAQ. Its meticulous construction, precision adjustment components, and compatibility with original accessories guarantee consistent performance and a long service life, backed by expert technical support from BERMAQ.
