Bending machinesHR 220
Description
Single-line thermoplastic bending machine for methacrylate and technical plastics
The HR 220 is a benchtop thermoplastic bending machine with a bottom heating element, designed for bending sheets of methacrylate, PC, PVC, PS, PP, PET, PMMA, and other thermoplastics with a thickness between 1 and 0 mm. The filament temperature and heating element working height are electronically adjustable via a control unit, ensuring precise bending of each material without risk of damage.
Its worktable is heat and scratch resistant, and it features a parallel back gauge with two rulers.
Ideal for universities, technical schools, electrical engineering, and prototyping, the HR 220 combines professional construction, ease of use, and a compact design that fits seamlessly into any workshop without taking up excessive space.Technical characteristics HR 220
Tabletop machine
Manual
Single line
Lower only
1 line
❌
Without side stop
2,200 mm
1 - 6 mm
230 V
1.000 W
2.480 x 465 x 160 mm
40 Kg
❌
-
Applications of the HR 220 Bending Machine
The HR 220 meets the thermoplastic bending needs of sectors working with thin sheets that require precision and repeatability:
From prototyping to mass production of plastics
Signage and display manufacturing: bending of methacrylate and PVC sheets for custom signs, displays, and displays
Acrylic furniture and decoration: creating clean parts
Product prototyping and design: manufacturing models and prototypes of plastic components for testing and validation
Industrial production of plastic parts: components for household appliances, electronics, and other thermoplastics
Technical and university training: Reference tool in technical schools, universities and engineering laboratories for plastics forming practices
HR 220 Bending Machine Operation

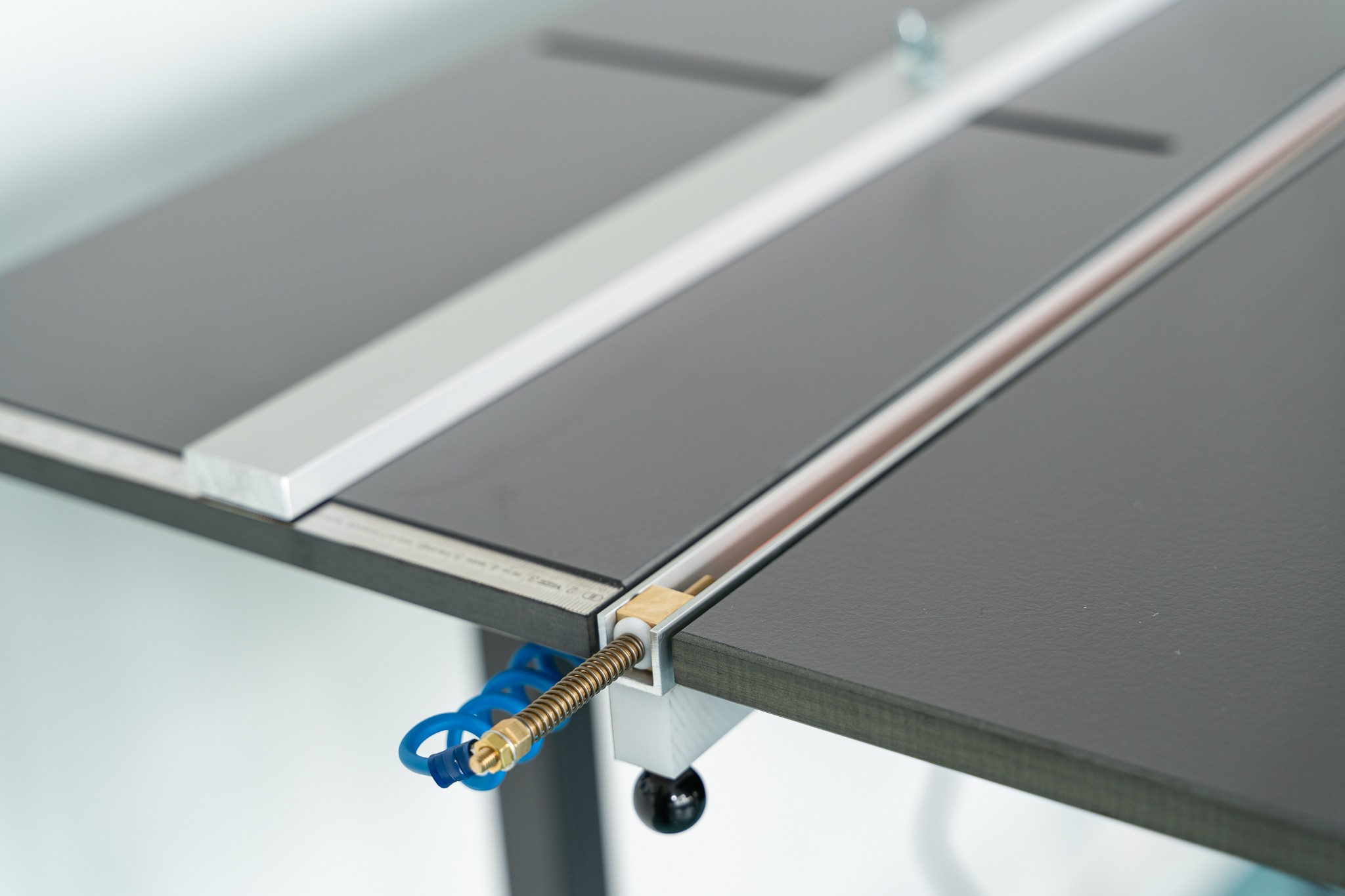

Lower Heating Line with Height-Adjustable Filament

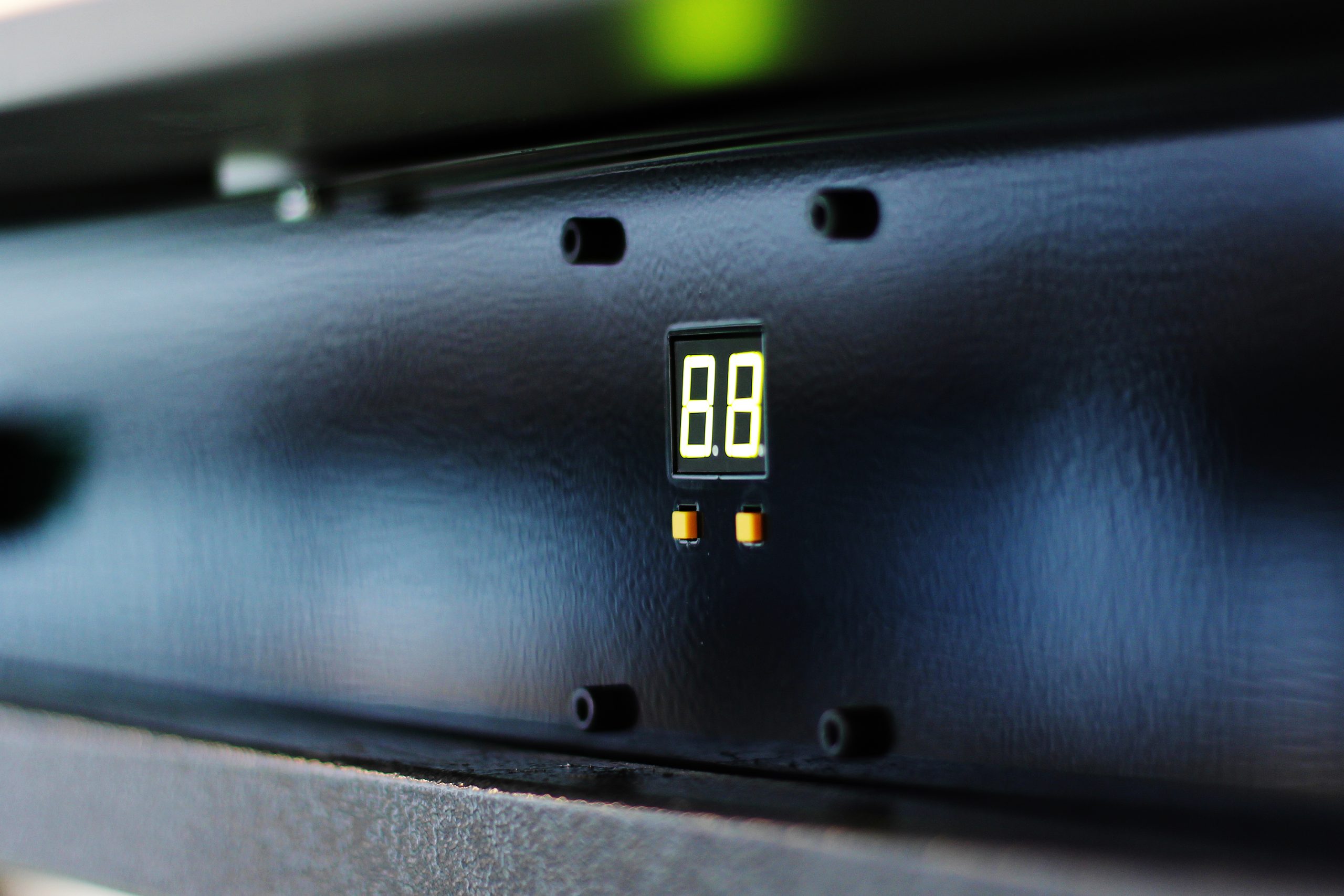

The HR 220's heating system is based on a lower heating line with a height-adjustable filament. The temperature is electronically adjusted with high precision, allowing the process to be adapted to each type of material and thickness without risk of overheating or unwanted deformation. This precision is especially relevant for very thin sheets, where excessive heat can irreversibly damage the workpiece.

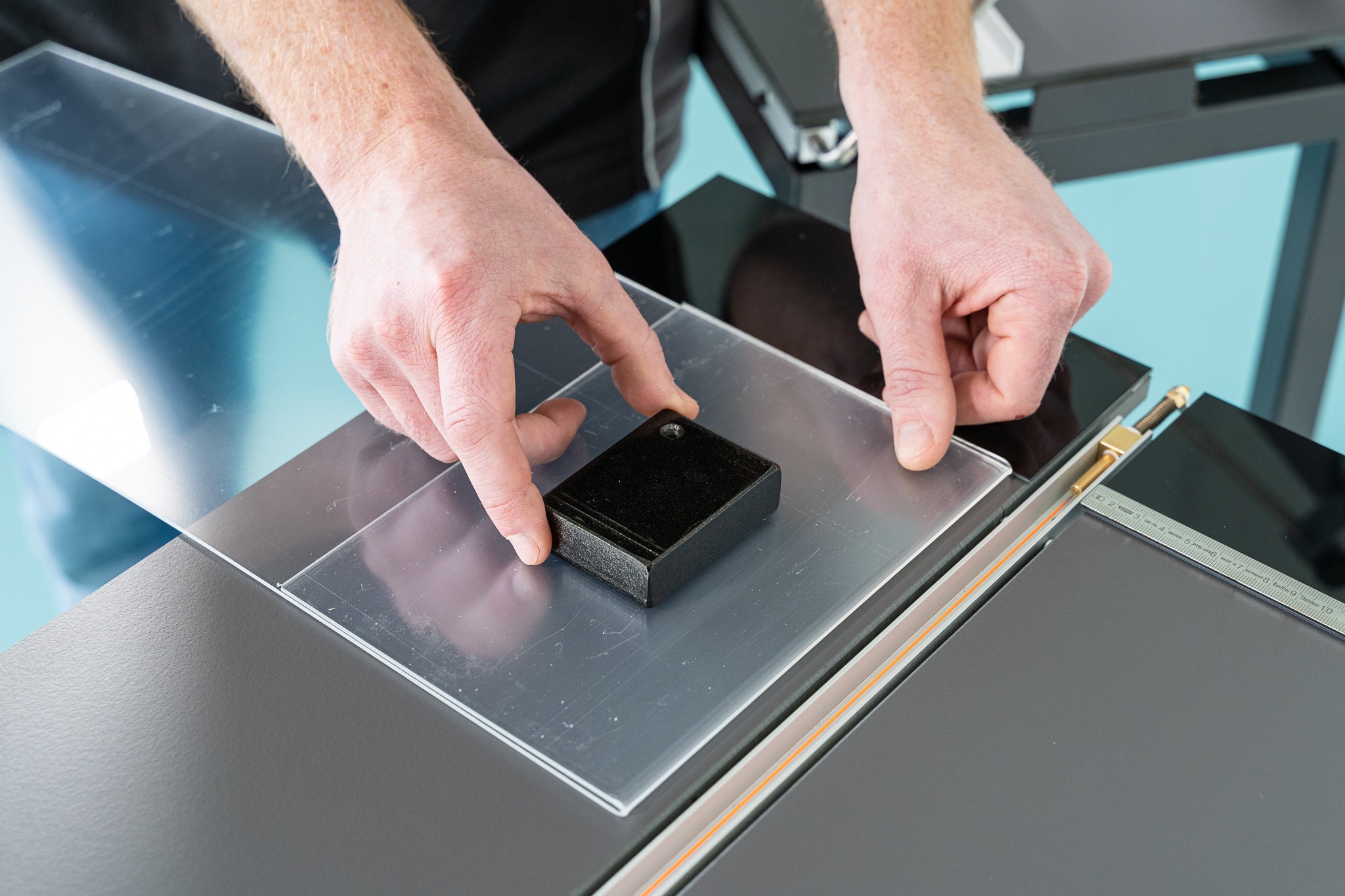

Durable Worktable and Precision Backgauge
The HR 220 incorporates a highly durable worktable, resistant to heat and scratches, with a parallel bent backgauge. For very thin sheets, a special bending profile can be attached to ensure a clean and precise result.
Adapt the HR 220 to your needs
Configurations and accessories for every bending application
Special bending profile for very thin sheets that require cleanliness
Electronically adjustable temperature to suit each type of thermoplastic: methacrylate, PC, PVC, PS, PP, PET, PMMA and others
Adjustable heating element height to optimize material use
Materials compatible with the HR 220
The HR 220 works with a wide range of thermoplastics in sheets from 1 to 6 mm thick:
Methacrylate and PMMA: the reference material, with excellent bending results
PC (polycarbonate): high-strength engineering plastic for industrial and safety components
PVC: commonly used in signage, lettering, and the manufacture of display components
- (polypropylene): lightweight materials for packaging, prototypes, and custom parts
PET: high-clarity thermoplastic for packaging and display applications
Comparative table
Ask for budget
The HR 220 is the benchmark thermoplastic bending machine for professionals, trainers, and technicians who need a reliable, precise, and easy-to-operate machine for bending acrylic and plastic sheets. Designed to deliver professional results without requiring a large investment or specific technical training.
In training environments such as universities and technical schools, and in prototyping and engineering departments, bending machines must meet three simultaneous conditions: repeatable results and withstand intensive use without deteriorating. The HR 220 meets all three criteria:
Electronic temperature control that eliminates human error in adjustment and guarantees consistent bending conditions for every operation
Heat- and scratch-resistant table that withstands high precision
Compact design and low power consumption that allows installation in any space and reduces operating costs
The HR 220 is the ideal entry point for professionals looking to add new equipment to their team. Its simple operation and minimal maintenance allow for professional results from the first use, while the range of available accessories, special bending profiles, temperature and height adjustments allow for expanding its capabilities as production demands grow.
