Bending machinesHR 50
Description
Tabletop thermoplastic bending machine with adjustable parallel stop and 500 mm working length
The HR 50 is a thermoplastic bending machine designed to deliver professional results in a compact, benchtop unit. With a working length of 500 mm and a single-line bottom heating system, it allows for highly precise bending of thin sheets, making it suitable for both educational settings and light industrial applications.
Constructed from heat- and scratch-resistant materials, the HR 50 incorporates a parallel back gauge. The temperature and working height of the heating element are independently adjustable, offering flexibility for working with materials of varying thickness and density.
Technical characteristics HR 50
Tabletop machine
Manual
Single line
Lower only
1 line
❌
With parallel stop
500 mm
1 - 6 mm
230 V
225 W
640 x 560 x 105 mm
18 Kg
❌
-
Applications of the HR 50 Bending Machine
The HR 50 bending machine is suitable for multiple sectors that require precise folding of plastic sheets in compact, desktop formats.
Custom Signage and Displays
The HR 50 creates custom displays in methacrylate or PVC. It produces clean, angled folds that give a professional finish to display elements.
Prototypes, Design, and Electrical Engineering
Perfect for creating functional prototypes and test models in materials such as PC or PMMA. Universities, technical schools, and engineering departments use it for industrial design projects and the manufacture of small electrical and electronic components.
Acrylic Furniture and Decoration
Suitable for manufacturing small furniture and decorative pieces in acrylic. It allows you to create simple structural shapes with clean and precise finishes.
Light Industrial Production
Suitable for the serial production of small plastic components for various industrial applications. Its robust construction and ease of use make it a reliable tool for short and medium production runs.
Crafts and Creative Projects
Craftspeople and creators use it for custom projects that require precise folding of plastic sheets, without the need for large-format equipment.
HR 50 Folding Machine Operation
Single-Line Bottom Heating for Clean and Controlled Folding
The HR 50 operates with a unique bottom heating system, integrated into a single line. The filament is height-adjustable, allowing the heating distance to be adapted to the thickness and type of material. This ensures homogeneous heat transfer and folding without unwanted deformation.

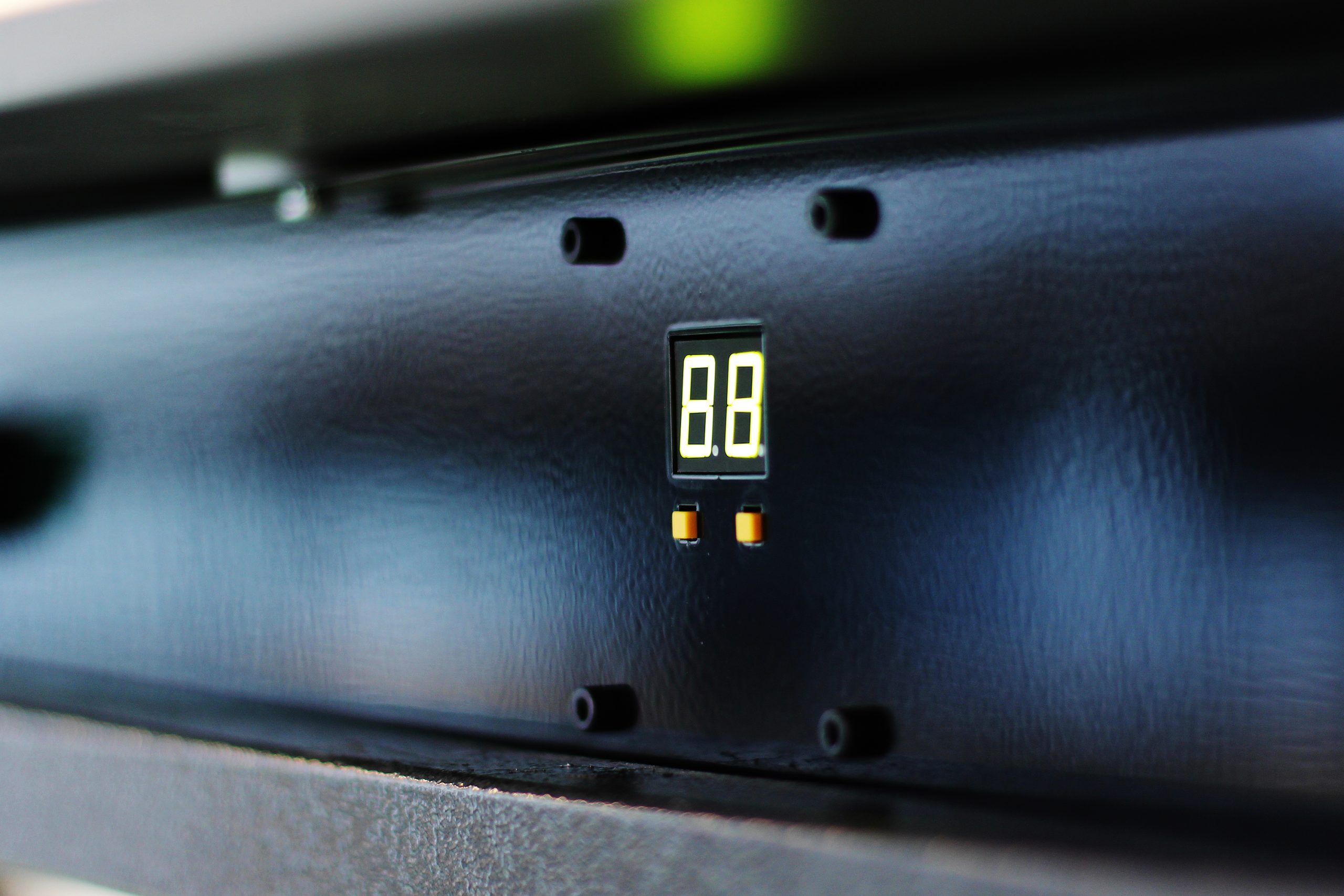

Electronic Temperature Control for Maximum Repeatability
The filament temperature is precisely regulated electronically by an integrated control unit. This feature is key to maintaining consistency in repetitive production runs and adapting to the specific requirements of each material.

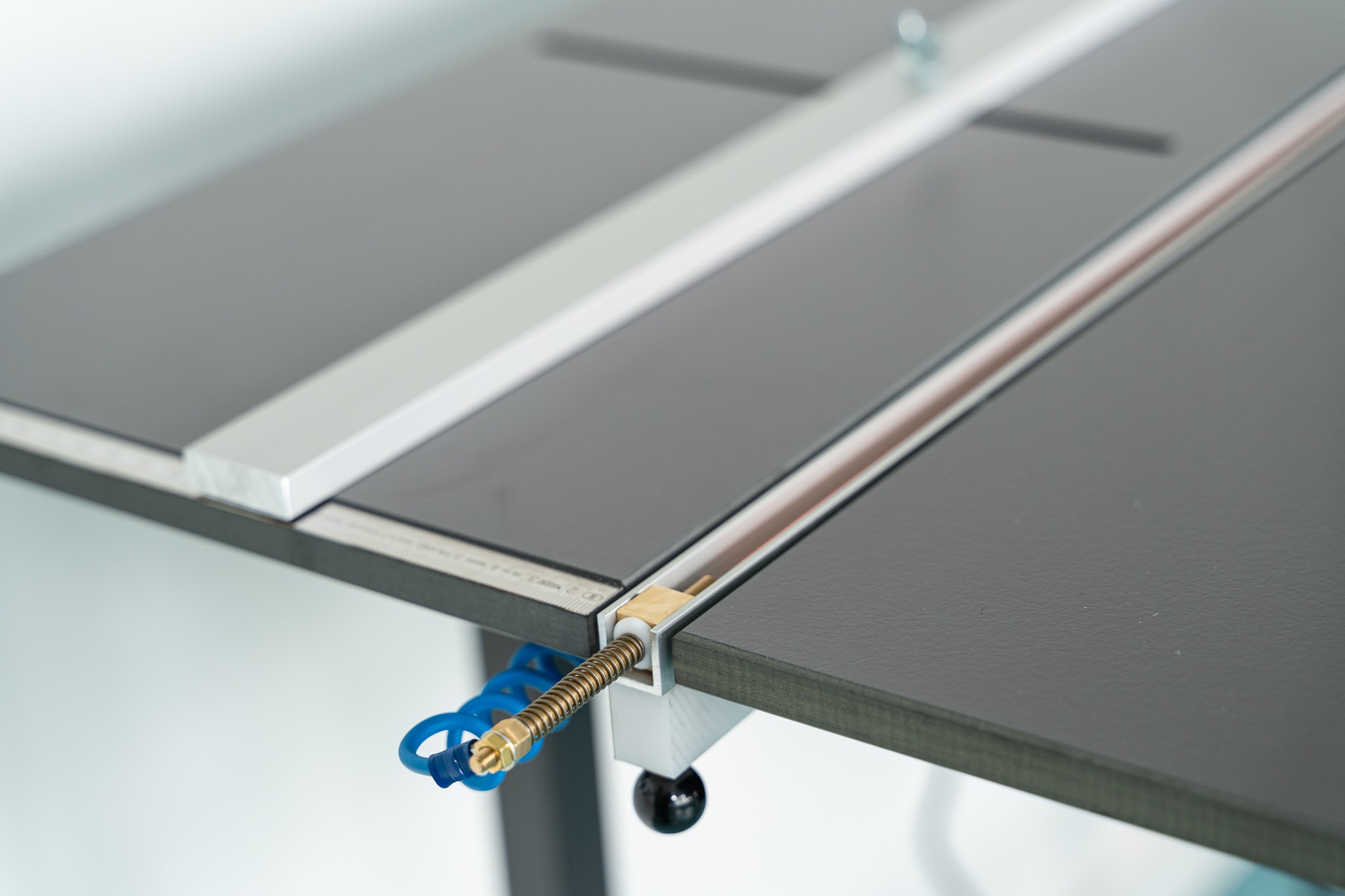

Parallel Backgauge and Rulers for Precise Folding

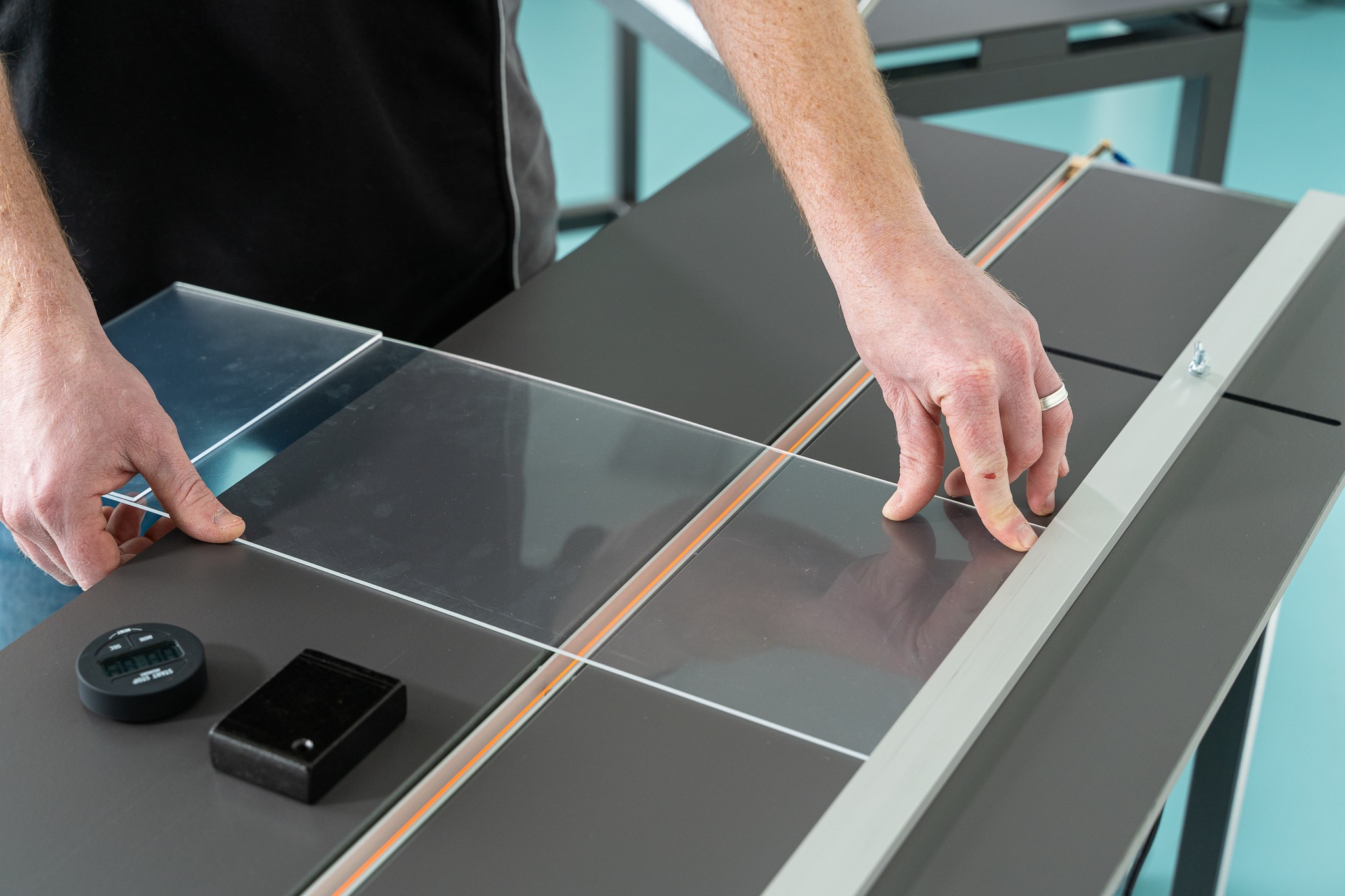

The machine incorporates an adjustable parallel backgauge and two rules that allow the sheet to be positioned precisely on each one. The result is repeatable and aligned folding, without the need for manual calibration on each piece.
HR 50 Bending Machine Construction
Durable and Heavy-Duty Resistant Work Surface
The HR 50 features a durable, heat- and scratch-resistant work surface. This surface withstands continuous contact with hot materials and tools, maintaining its properties over time.
Compact, Tabletop Design for Small Spaces
With dimensions of 640 × 560 × 105 mm and a weight of 18 kg, its tabletop design makes it portable and easy to integrate into any workshop, classroom, or laboratory.
Compatibility with Special Bending Profile for Very Thin Sheets
The HR 50 supports the installation of a special bending profile for working with extremely thin sheets. This option expands the machine's versatility and allows for applications requiring very high bending precision. Configure the HR 50 for your production needs. break. A recommended option for precision applications in prototyping or fine signage.
Complementary accessories to expand the possibilities
The HR 50 is compatible with a range of BERMAQ accessories that allow you to adapt the machine to the specific requirements of each production run. Consult with our technical team about the options available for your sector and application.
Materials compatible with the HR 50
The HR 50 bending machine works with a wide variety of thermoplastics and acrylic materials:
Methacrylate (PMMA): one of the most common materials in signage and design; the HR 50 offers clean, mark-free bending.
Polycarbonate (PC): widely used in protective coverings and technical components; the HR 50 allows bending with precise temperature control.
PVC: standard material in the plastics industry; compatible with thicknesses up to 6 mm on the HR 50.
Polystyrene (PS): common in packaging, displays and lightweight parts; It folds easily and has smooth finishes.
Polypropylene (PP): resistant and flexible material, ideal for industrial components and technical parts.
PET: thermoplastic polyester with good mechanical properties; compatible with the HR 50 working range.
PMMA and other acrylics: broad compatibility with common acrylic variants in sectors such as design and advertising.
Comparative table
Ask for budget
The HR 50 is the BERMAQ HR range benchtop bending machine designed for professional environments that require precision and versatility in a compact format. With a 500 mm working length, it is aimed at universities, technical schools, engineering workshops, and small industries that need to bend plastic sheets with consistent and repeatable results.
The HR 50 was designed by a professional team. Electronic temperature control, a parallel back gauge, and two adjustment rails allow for quick machine setup and precise bends from the first operation.
Ideal for operators starting out with thermoplastics or for educational environments where ease of learning is a priority.Unlike larger machines, the HR 50 offers compatibility with a wide range of thermoplastic materials, including PET and PMMA. With a working range of 1 to 6 mm thickness, it accommodates most standard sheets on the market. The option to add a special folding profile also enables it to work with extremely thin materials.
Like the rest of the HR range, the HR 50 is manufactured to industrial quality standards. The heat- and scratch-resistant working surface, robust construction, and precision adjustment components ensure a long service life and consistent performance. BERMAQ manufactures and distributes plastic processing machinery with decades of experience, offering specialized technical support and original accessories for each model.
