Description
Modular floor-standing bender with double heating
The HRP-S 220 is a sturdy floor-standing thermoplastic bending machine by Shannon Machines, with digitally controlled bottom and top heating and a working length of 2,200 mm. Heating from both sides speeds up the process, reduces material stress and makes it possible to work thick sheets and polycarbonate.
It comes standard with 2 digital temperature control units, 1 bottom and 1 top heating line, a parallel back stop and 1 clamping bar. Its modular construction allows expansion up to 4 bottom and 2 top lines: a machine that grows with the output of sign, POP and furniture workshops.
Technical characteristics HRP-S 220
Soil
Manual
Several lines
Bottom and upper
1 - 4
✔️
1 to 4 bottom lines / 1 to 4 top lines
2.200 mm
1 - 12 mm (Max. 15 mm)
230 V
2 kW - 4 kW
2.390 x 1.300 x 1.720 mm
470 Kg
1 - 2
20 - 1.000 mm
Applications of the HRP-S 220 bending machine
Multi-bend part batches in a 2,200 mm format
The ability to work with several bending lines at once and a distance between bends of 20 to 1,000 mm makes the HRP-S 220 a highly efficient tool for producing parts with more than one bend, with consistent repeatability from batch to batch:

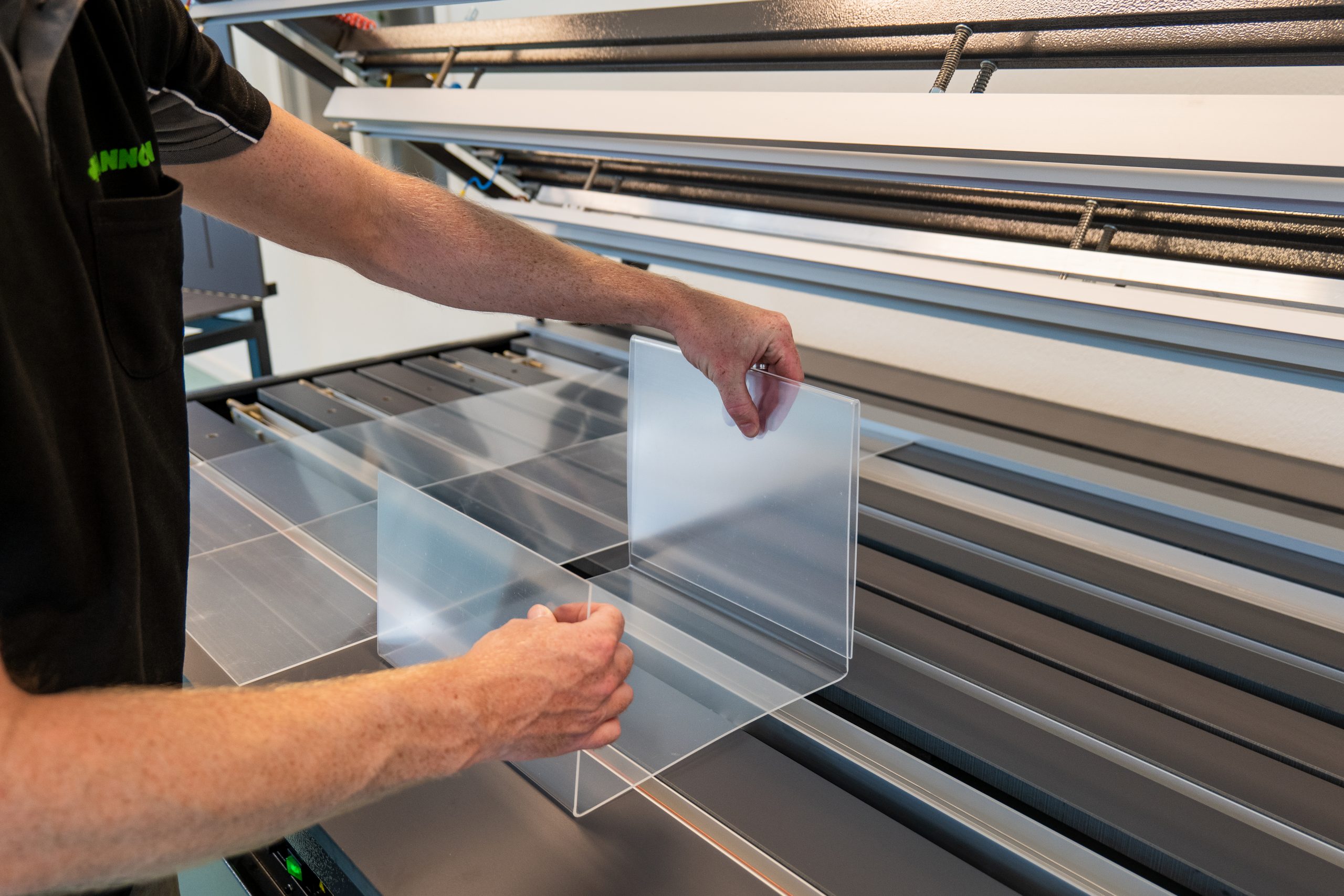

Displays and POP: catalogue stands, leaflet holders, card holders and poster holders in acrylic with precise parallel bends.
Signage and sign making: signs, supports and visual communication elements in medium and large formats.
Interior design and furniture: showcases, decorative pieces and acrylic furniture elements with a professional finish.
Industrial components and prototypes: technical plastic parts and models for testing and industrial design.
Thick sheets and polycarbonate: clean bends in demanding materials thanks to double-sided heating.
Heating technology of the HRP-S 220 bending machine

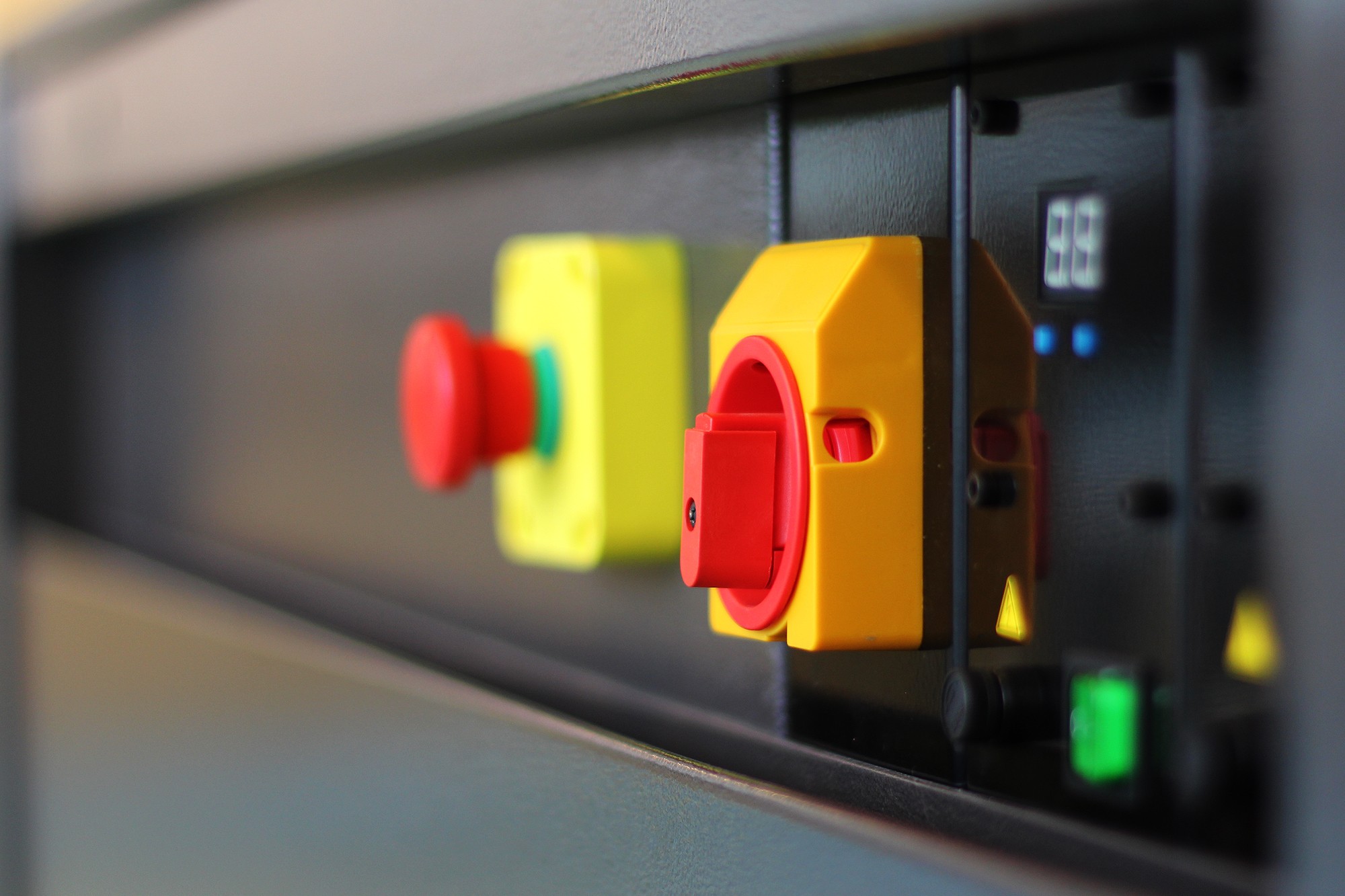

Double-sided heating with digital regulation
The HRP-S 220 works with digitally controlled bottom and top heating wires. The temperature of the heating elements is adjustable and heat reaches the sheet from both sides, so sheets are processed faster and, above all, material stress is reduced when bending thicknesses from 1 to 12 mm.
Up to 4 bottom and 2 top profiles across 2.2 metres
The heating profiles are easily positioned and the wires are height-adjustable. The machine accepts 1 to 4 bottom heating lines and 1 to 2 top lines, so several bends can be made in the same cycle.

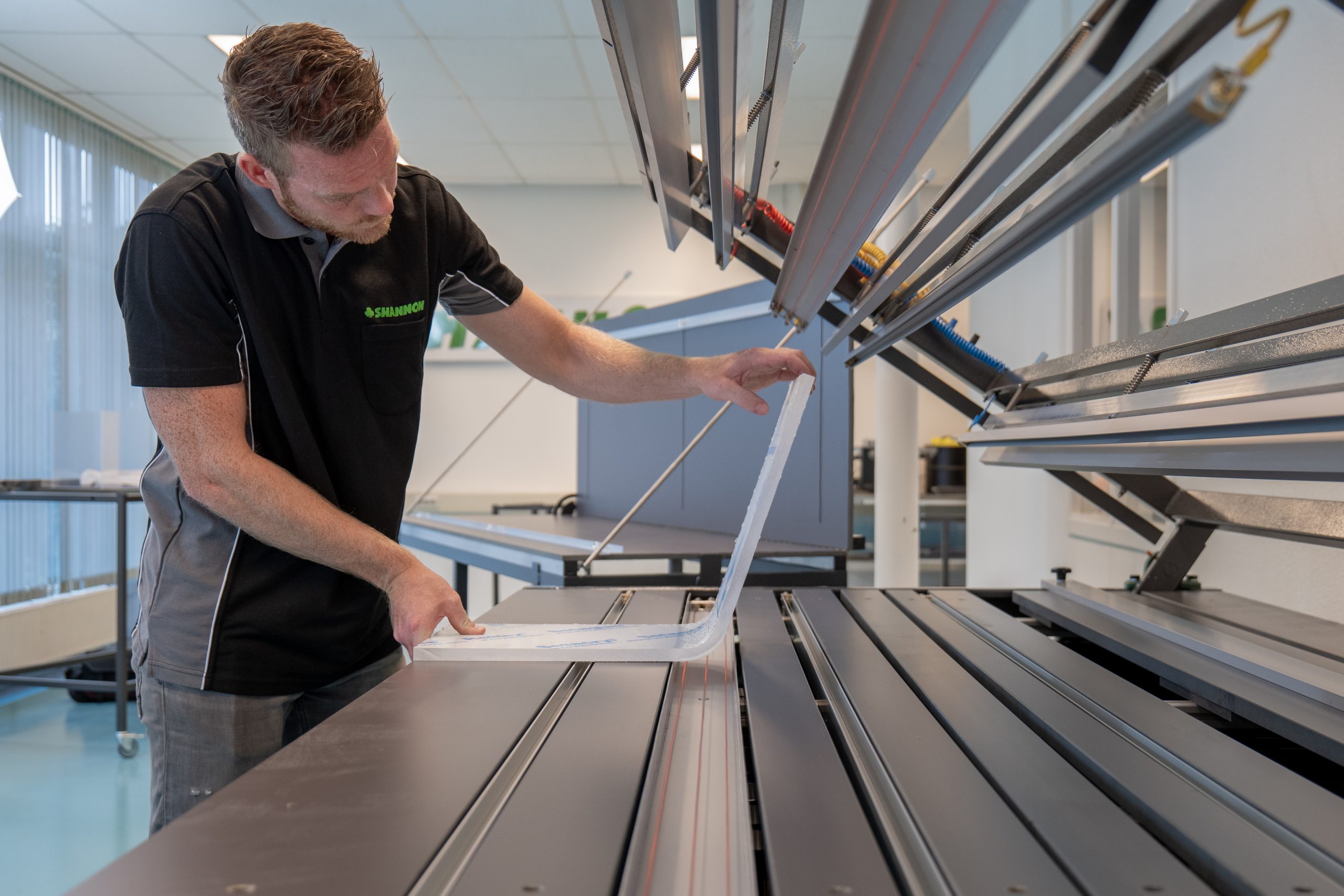

Top frame with foot pedal, timer and pressure bars
The top frame is controlled by a foot pedal and a timer, ensuring identical heating times for every part. Its adjustable pressure bars hold the sheets in place and prevent them from warping during heating, the so-called banana effect.
Parallel bends from 20 to 1,000 mm apart
The distance between two bends can be set from 20 to 1,000 mm, and the parallel stop with a millimetre and inch scale makes it easy to position the sheet accurately for displays and parts with several parallel bends.
Construction of the HRP-S 220 bending machine
470 kg floor-standing frame for daily production
Measuring 2,390 x 1,300 x 1,720 mm and weighing 470 kg, the HRP-S 220 provides a stable, robust base for continuous use in the workshop. The machine is internally pre-wired to take additional heating profiles and control units without altering its structure.
Heat-resistant surface of adjustable panels
The work surface is durable and heat-resistant and consists of several adjustable panels that adapt to the position of each bending line. The graduated parallel stop completes a workstation designed for precision.
230 V connection with 2 to 4 kW consumption
It runs on a 230 V connection with a consumption of 2 to 4 kW depending on the number of lines installed, a simple electrical set-up for most workshops.
Configure the HRP-S 220 bending machine for your production
From the standard set-up to 4 bottom lines
Modular expansion: from the version with 1 bottom and 1 top profile up to 4 bottom and 2 top, with 4 controllers and 2 pressure bars.
Additional parallel stop: more reference points for positioning sheets in parts with several bends.
Contact bending profiles: for thin sheets and foamed PVC, with Teflon support blocks on 220 cm machines.
VMA 220 cooling support: cooling jig with adjustable angle, available with a wheeled frame with brakes.
Working length adjustment kit: adjustable hot and cold zones on the same heating wire.
Comparative table
Ask for budget
Materials compatible with the HRP-S 220 bending machine
From 1 to 12 mm, and up to 15 mm with special profiles
The HRP-S 220 bends the main thermoplastics on the market. With special bending profiles or 2-element reflectors, capacity reaches up to 15 mm thickness:
Acrylic (PMMA): displays, signs and furniture with clean bends and no warping.
Polycarbonate (PC): double-sided heating allows it to be bent with less internal stress.
Polystyrene (PS): POP supports and visual communication elements for fast production.
PVC: technical parts, guards and signage elements with uniform bends.
Thin sheets and foamed PVC: very straight bends with the contact bending profiles.
HRP-S 220, HRP-S 300 or HRP 220: key differences
The HRP-S 300 shares the same architecture but extends the working length to 3,000 mm, weighing 570 kg with a working thickness of 1 to 10 mm. The HRP 220 keeps the 2,200 mm length but runs on 400 V with up to 8 kW, accepts up to 4 top lines and reaches a maximum thickness of 25 mm. The HRP-S 220 is the balanced choice for anyone who needs several bending lines over 2.2 metres on a 230 V connection.
Less material stress and faster cycles
Simultaneous heating from both sides shortens the time needed to soften the bending zone and reduces material stress, a decisive factor with polycarbonate and thick sheets. Combined with the timer-controlled top frame and pressure bars, the result is straight parts with no banana effect and repeatable quality over long runs.
Official Shannon distribution and BERMAQ technical service
The HRP-S 220 is manufactured by Shannon Machines and officially distributed by BERMAQ with the BERMAQ Endorsed seal. We help you choose the right line configuration and accessories, and our after-sales department provides a constant, personalised service, with a network of specialised technicians, operator training and the option of preventive maintenance to extend the equipment's service life.
