Polishing machinesAM2-i

Name: Pulidora AM2-i
Brand: BERMAQ
Availability: InStoreOnly

Semi-automatic edge polisher for methacrylate and technical plastics/ Aplications

/ Materials

Description

Semi-automatic edge polisher for methacrylate and technical plastics

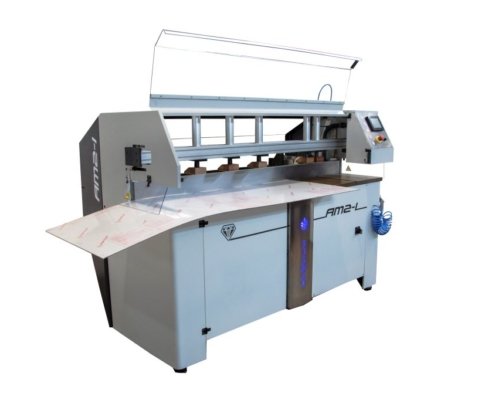

The AM2-i is a semi-automatic edge polisher designed for machining and polishing methacrylate (PMMA), acrylic, PC, aluminum, resins, and other soft materials. It combines automatic functions—feed motor, touchscreen, and 5 clamps—with the versatility of a manually tiltable head up to +45°, allowing work on both straight edges at 90° and bevels, with pieces up to 120 mm thick in the straight position and up to 75 mm thick in the bevel position. It simplifies the configuration of polishing parameters via a touchscreen, guaranteeing high-quality results with minimal manual intervention. Equipped with genuine BERMAQ® diamond tools, it delivers bright, smooth, and completely transparent edges that enhance the quality and appearance of every piece.

Technical characteristics AM2-i

Effective length

1400 mm

Maximum thickness

120 mm (straight) / 75 mm (45º)

Straight edges (90º)

✔️

Bevelling / angle polishing

✔️

Minimum / maximum inclination

-2º / +45º

Workpiece feed

Automatic

Feed rate

Up to 10 m/min

Milling motor speed

5.000 a 10.000 rpm

Cutting depth

0 - 4 mm

Workpiece clamping

Pressers

Number of clamps

Power supply

220 V 3PH/ 380V 3PH+N // 60Hz/ 50H

External dimensions

2.300 x 1.300 x 1.600 mm

Weight

1.200 Kg

EC safety certificate

✔️

* Recommended values with option to modify

Applications of the AM2-i Polisher

The AM2-i is the solution for professionals who need to combine high production capacity with versatility of angles and materials in a single machine:

Sectors and uses where the AM2-i makes the difference

Acrylic displays and stands: straight and beveled edges on communication and point-of-sale displays with high aesthetic demands

Acrylic art and decoration: custom decorative elements with a glossy finish and optical clarity in a single pass
small and medium-sized pieces with professional results without manual retouching
Production Industrial technical parts: methacrylate, PC, aluminum and resins for applications requiring high finish tolerances

AM2-i Polisher Equipment

Tilt-head and semi-automatic control for maximum flexibility

The AM2-i's manually tilt-head allows you to adjust the working angle from -2° to +45° without tools or complex settings. The automatic feed motor, with adjustable speed up to 10 m/min, and the integrated touchscreen allow you to quickly and intuitively configure the cutting depth—from 0 to 4 mm—and polishing parameters, reducing setup time between runs.

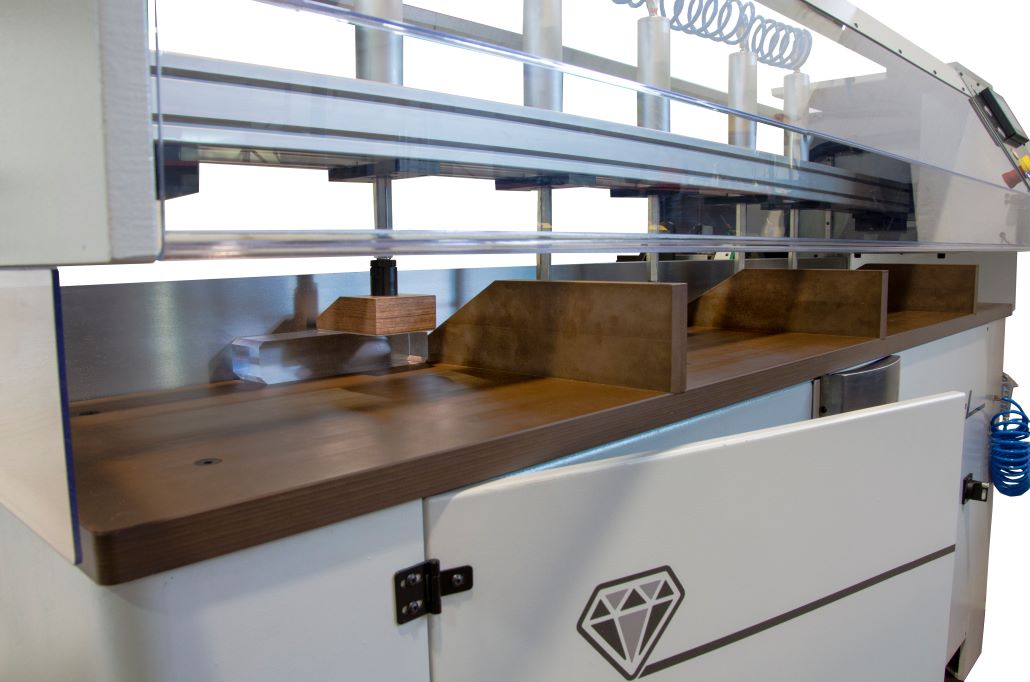

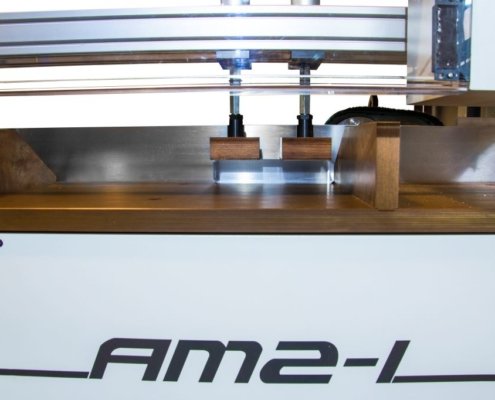

The AM2-e's 5-clamp system incorporates 5 clamps that keep the workpiece fixed and stable throughout its travel on the worktable. This system guarantees uniform movement and eliminates any unwanted motion, ensuring identical results piece after piece, even in long production runs or with thick materials. High-speed milling motor for all types of materials. Equipped with a high-speed milling motor and adjustable cutting depths from 0 to 4 mm, the AM2-i performs both rapid roughing operations and fine surface finishing. It can process workpieces up to 120 mm thick in the straight position and up to 75 mm thick in the 45° bevel position, with a usable working area of 1,400 mm. BERMAQ®: the EIMQ-131001-BQ for cutting (black) and the EIMQ-131003-BQ for clear finishing (red). These tools guarantee finishes with high transparency, gloss, and smoothness, with minimal maintenance costs and a long service life under intensive use.
Integrated dust extraction system for a clean working environment
The AM2-i incorporates an integrated dust extraction system throughout the process, reducing the need for cleaning downtime and contributing to operator safety.

AM2-i Polisher Manufacturing and Quality

A 1,200 kg Machine Designed for Intensive Production

The AM2-i is a 1,200 kg machine with dimensions of 2,300 × 1,300 × s. It is CE certified. Its robust structure absorbs vibrations during operation and guarantees the stability necessary to maintain precision in demanding and long-term production runs.

Built piece by piece by BERMAQ specialists

Each AM2-i unit undergoes meticulous quality control at every stage of production, from the first component to final testing. It is sold exclusively through BERMAQ and certified official distributors. All components are sourced from the European Union and are CE certified.

Adjustable to your needs

Adapt the AM2-i to the specific needs of your production

Additional BERMAQ® diamond tools depending on the type of material or finish: clear, matte, satin, or other specific finishes

Adjustable up to 10 m/min, adjustable according to the material and the required cutting depth. Adjustable cutting depth from 0 to 4 mm to suit every operation, from roughing to fine surface finishing.

Comparative table

Ask for budget

/ More information
BERMAQ AM2-i: When Semi-Automation Changes Real Productivity
The AM2-i is the BERMAQ polisher designed for workshops and companies that have outgrown the capacity of manual machines but don't need a fully automated production line. It occupies the perfect balance between flexibility and performance: it allows for precise parameter settings, polishing at various angles, and maintaining consistent results without relying on the operator's skill at every step.
With the AM2-i, the automatic feed motor and 5 clamps eliminate this variability:
Constant feed rate regardless of the operator, guaranteeing the same quality along the entire length of the workpiece
Sets up for imperfections and reduces setup time between runs
Five clamps that hold the workpiece uniformly throughout the entire travel, eliminating irregularities in the finish
Materials the AM2-i works with:
the main material, with finishes of maximum transparency and optical clarity up to 120 mm thick
PC and resins: technical plastics for industrial and decorative applications with high finish requirements
edge machining on technical and decorative parts with a light finish and Precise
PVC and other soft materials: compatible with BERMAQ® diamond tools for diverse uses in signage and industrial manufacturing
Edging as an added value Edges achieved with the AM2-i are not merely an aesthetic result: they provide perceptible added value to the final product that the customer appreciates and that the professional can translate into a real competitive advantage. In sectors such as visual communication, decoration, or display manufacturing, edge quality is part of the product's identity.
BERMAQ Exclusivity and Authenticity
The AM2-i is manufactured and marketed exclusively by BERMAQ and certified official distributors. Each machine is handcrafted by BERMAQ's specialist technicians with exhaustive quality control at every stage. Buy from the manufacturer: it's only original if it bears the BERMAQ seal.
