CNC milling machinesFCN-P

Versatile precision for large formats/ Aplications

/ Materials

Description

Versatile precision for large formats

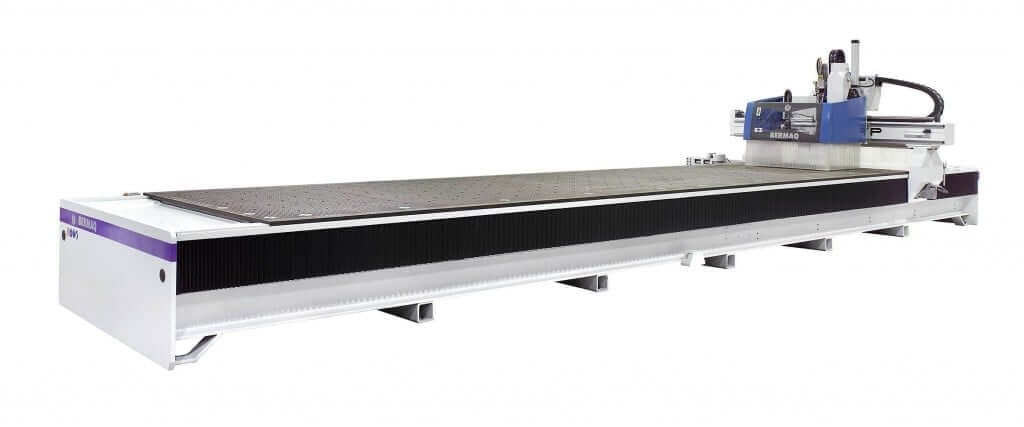

Numerical control (CNC) milling machine, designed to offer versatility and reliability in the high-speed machining of all types of non-ferrous materials.

Thanks to its mobile bridge structure, its high dynamic performance, modularity and power, this machine is positioned as the ideal solution for parts that require high quality finishes and precision.

The FCN-P stands out for its versatility and performance, making it the perfect choice for companies working with plastics in various sectors, such as automotive, nautical, railway, aerospace and aluminium mould and model making. It is also particularly suitable for the application of Nesting on sheets and boards.

Technical characteristics FCN-P

Axes

3 or 4

Structure

Mobile bridge

Working area

X: 3.100, 4.100 mm Y: 2.100 mm Z: 250 mm

Vacuum pump

250 m3/h

* Recommended values with option to modify

APPLICATIONS:

Graphic arts: illuminated signs, advertising panels, elements for stands and engravings.
Industry: domestic appliances, machining of composite materials, plastics, wood and aluminium
Construction:Corian, aluminium profiles, PVC and Alucobond for facades
Decoration: cut-outs for screens, carpets, advertising objects and gifts

Features:

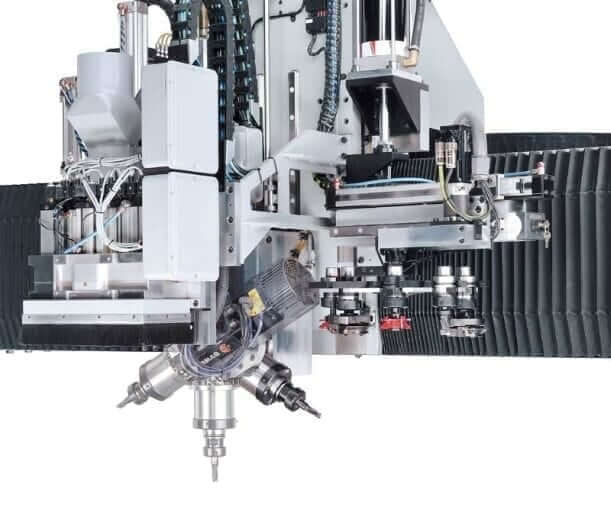

Machine prepared for 3 to 4 controlled axes.
8kW air-cooled motor - 24.000 rpm
Iso-30 cone
Possibility to adapt C-axis for aggregates
Useful working area with the following possibilities:
- Useful length of 3.100, 4,100 mm (X-axis)
- Workable width max. 2.100 mm (Y axis)
- Workable height 250 mm (Z axis)
Vacuum pump 250 m3/h
Blowers 500 m3/h
CNC Siemens
Custom manufacturing according to our customers' needs

xxxxxxx
