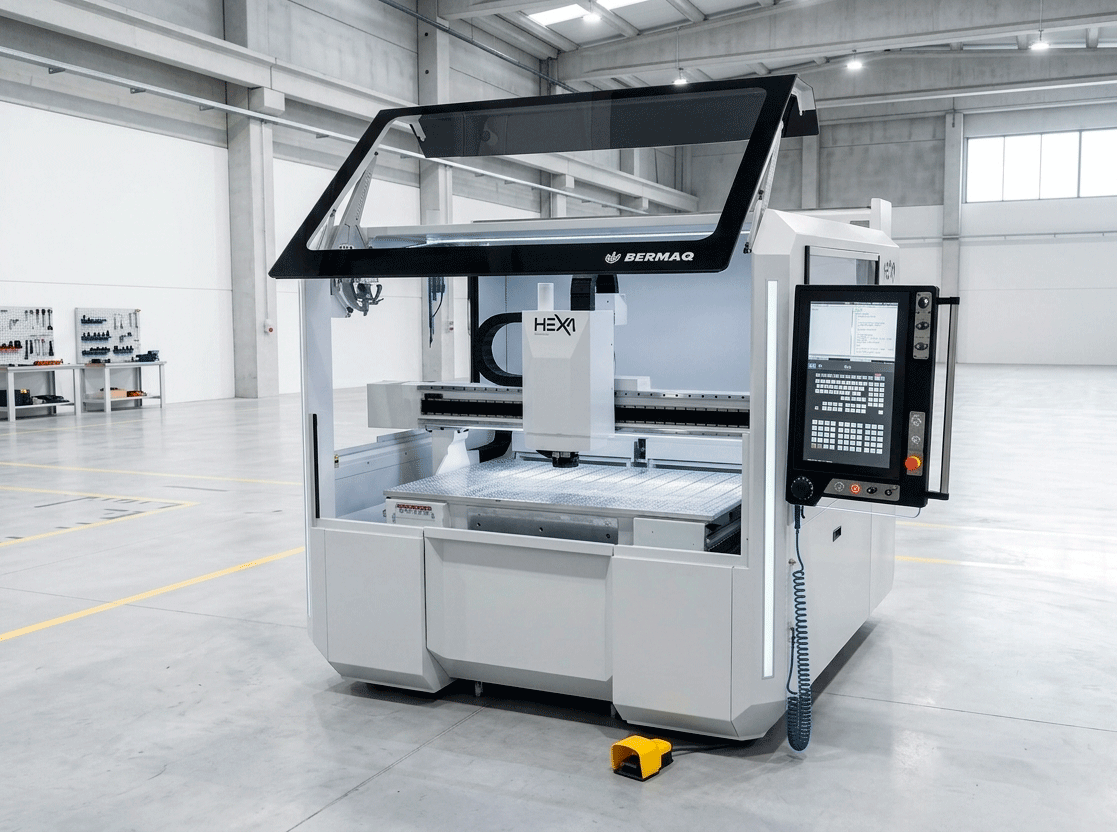

High-Speed CNC Milling Machine
The HEXA is a state-of-the-art CNC milling machine equipped with Direct Drive linear motors on the X and Y axes, specially designed for machining, cutting, engraving, milling, and polishing diverse materials in demanding industrial environments.
Its anti-vibration system guarantees exceptional thermal and mechanical stability, even at the highest operating speeds. A machine designed for sectors that demand maximum precision, repeatability, and productivity.
3
Steel structure with anti-vibration concrete polymer.
1.500 x 1.000 x 200 mm
HITECO 6,5 kW
12.000 rpm
36.000 rpm
100 m3/h
12 or 24
BLUM Z-NANO
Table with vacuum pump and threaded holes.
CNC MITSUBISHI M80W
Liquid
Aluminium with grid pattern.
X: 100 m/min - Y: 100 m/min - Z: 30 m/min
Automatic
X,Y: Linear drives
The HEXA machine is designed for high-precision CNC machining of non-ferrous materials, offering outstanding versatility for the manufacture of parts, components and tooling across a wide range of industrial sectors. Its ability to machine aluminium, engineering plastics, composite materials, copper, brass and other non-ferrous materials makes it an ideal solution for applications requiring precision, excellent surface finish and production flexibility. Key applications include the manufacture of enclosures, panels and components for the electronics industry; the machining of aluminium plates and profiles for the aerospace and automotive sectors; the production of signs, graphic elements and structures for advertising and exhibition stands; as well as the manufacture of dies, stamping tools, technical parts and specialised fixtures. HEXA can handle both complex geometries and milling, drilling and contouring operations, adapting to the needs of a wide range of industries.

The incorporation of Direct Drives linear motors on the X and Y axes eliminates traditional mechanical transmission elements, reducing wear. The result is a machine with superior dynamics and significantly less maintenance.
High-Speed Spindle for Exceptional Finishes
The spindle incorporates a HITECO QD-2 6.5 kW electrospindle with HSK-E40 taper, capable to reach 36.000 rpm. Equipped with ceramic bearings and liquid cooling, it guarantees high thermal stability and reliable operation even at the highest working speeds. Internal pressurization prevents the entry of dust and dirt, increasing the durability of the assembly. Fast and reliable tool change. The machine incorporates a 12-position linear tool magazine integrated into the bed, compatible with HSK-E40 tapers and ER-2 collets. It accommodates tools up to 35 mm in diameter and 100 mm in length, providing versatility for a wide variety of machining applications without interrupting the production cycle. It also features a grid and four CNC-controlled vacuum zones, manageable from the control panel or the machining program. Its modular configuration allows it to be adapted with T-slots, tapped centers, or multi-drill systems according to the needs of each project. The MITSUBISHI M80W control offers advanced process management. Its intuitive interface, high processing speed, and extensive programming capabilities ensure optimal machine control at all times.

The HEXA is built on a steel structure with anti-vibration polymer concrete, a solution that absorbs vibrations generated during machining. This structural rigidity translates directly into high-quality finishes and consistency between cycles.
With 100 m/min in X and Y thanks to linear motors, the HEXA drastically reduces downtime between operations.
The absence of mechanical transmission elements to the main axes significantly reduces machine wear points.
Combined with the automatic lubrication system and the climate-controlled electrical cabinet, the HEXA is a machine designed to maximize uptime and minimize technical interventions.
3 kW (1,400 m³/h) high-pressure vacuum cleaner
Additional linear change for 12 positions
BLUM TC76 workpiece probe
VORTEX tool cooling system
Air/oil tool lubrication (LUBETOOL)










Materials |
|---|
Aplications |
Axes |
Structure |
Working area |
Milling head |
Rated speed |
Maximum speed |
Vacuum pump |
Tool changer |
Tool setter |
Workpiece clamping system |
Control panel |
Cooling system |
Worktable |
Positioning speed |
Lubrication |
Transmission |
Ask for budget
Greater precision, higher speeds and increased productivity in a compact working space. BERMAQ introduces HEXA, a new 3-axis CNC machining centre featuring Direct Drive linear motor technology to deliver outstanding dynamic performance when machining non-ferrous metals, engineering plastics and composite materials.
BERMAQ’s new HEXA CNC milling machine has been developed to meet the needs of an industry that increasingly demands greater precision, speed and flexibility in machining processes.
Featuring a compact design and fully enclosed structure, HEXA incorporates high-speed machining technology in a format that optimises available floor space in industrial facilities without compromising the performance expected of high-performance machining centres.
HEXA is a 3-axis CNC machining centre with a working area of 1,500 × 1,000 × 200 mm. It features a moving gantry, along which the milling head travels, allowing workpieces of different shapes and sizes to be machined with precision.
The worktable offers several workholding options. Its grid configuration and vacuum zones allow sheets and panels to be secured using a vacuum pump, while the mechanical clamping options make it easy to attach fixtures and dedicated tooling for specific applications.
This versatility makes HEXA a particularly attractive solution for companies that need to handle different types of machining operations, materials and production runs.
HEXA has been designed to process a wide range of materials, particularly those requiring high machining speeds, dimensional accuracy and high-quality surface finishes.
Materials that can be machined include:
Aluminium and lightweight alloys.
Brass and other non-ferrous metals compatible with the machining configuration.
Methacrylate (PMMA), acrylics and polycarbonate.
Engineering plastics such as PVC, PETG, polystyrene and other related materials.
Composite materials, including carbon fibre and glass fibre-reinforced composites.
Wood, MDF and derived materials.
Technical resins and foams.
Its versatility makes it suitable for milling and machining operations, as well as cutting, trimming, engraving and the production of three-dimensional geometries.
One of HEXA’s most interesting applications is the production of multiple parts from a single sheet of material.
Using nesting techniques, different part geometries can be arranged across the same working surface to make the most of the available material and minimise waste.
This approach is particularly useful for companies manufacturing customised parts, technical components or small and medium-sized production batches, as it helps optimise manufacturing processes and reduce setup times.
The combination of a vacuum table, high dynamic motion capabilities and an automatic tool changer makes it possible to perform different operations within a single machining cycle.
Beyond its compact, fully enclosed design, HEXA’s key technological differentiator is its X- and Y-axis drive system, based on Direct Drive linear motors.
Unlike conventional systems, which use rotary motors and mechanical components to convert rotational motion into linear movement — such as ball screws, belts or rack-and-pinion systems — linear motors generate motion directly along the axis.
This technology eliminates the need for several intermediate mechanical components, delivering a much more direct and precise dynamic response.
The integration of linear motors into the longitudinal and transverse axes enables positioning speeds of up to 100 m/min on both axes, together with high acceleration rates and excellent responsiveness to changes in direction.
But what practical benefits does this technology bring to day-to-day production?
Eliminating conventional mechanical transmission components reduces mechanical clearances and errors associated with backlash.
This delivers a more direct response from the machine axes and contributes to high positioning accuracy and repeatability, particularly in operations involving frequent changes of direction.
Linear motors enable exceptionally high positioning speeds. In HEXA’s case, speeds of up to 100 m/min can be achieved on both the X and Y axes.
This capability is particularly beneficial in manufacturing processes involving numerous machining operations, drilling cycles, contours and movements between different areas of a workpiece.
The result is less non-productive time and improved overall machine performance.
Direct drive technology enables high acceleration and deceleration rates, as well as extremely fast changes of direction.
This is particularly advantageous when machining complex geometries involving small radii, curves, irregular contours and toolpaths that require frequent directional changes.
The responsiveness of linear motors helps reduce transition times between movements and optimise overall cycle times.
Fast response times and precise motion control make it easier to follow complex toolpaths and reproduce programmed trajectories with greater accuracy.
This can translate into improved surface finishes, particularly on parts with intricate geometries, small radii and contouring operations.
By eliminating conventional transmission components from the X and Y axes, such as ball screws, nuts and pinions, the number of components subject to the mechanical wear associated with traditional drive systems is reduced.
This simplifies maintenance of the drive system and reduces the need for periodic adjustments and component replacement.
Ultimately, linear motors give HEXA a combination of precision, speed and dynamic performance that is difficult to achieve with conventional transmission systems.
The integration of linear motors and the ability to achieve high travel speeds are only meaningful if the machine structure can provide the stability required during machining operations.
For this reason, HEXA features a reinforced steel structure incorporating vibration-damping polymer concrete, a construction solution that helps absorb vibrations and improve the overall mechanical and thermal stability of the machine.
This structural rigidity is particularly important when machining aluminium and other non-ferrous metals, where cutting forces and vibrations can directly affect dimensional accuracy and the surface quality of finished parts.
Combining a stable structure with linear motor technology makes it possible to take greater advantage of the machine’s dynamic capabilities while maintaining a high level of consistency throughout production processes.
HEXA is equipped with a 6.5 kW HITECO electrospindle, featuring a nominal speed of 12,000 rpm and a maximum speed of up to 36,000 rpm.
This high rotational speed allows the use of small-diameter tools and high-speed milling strategies, making it particularly suitable for machining engineering plastics, methacrylate, composite materials and aluminium.
The electrospindle features liquid cooling and ceramic bearings, helping ensure thermal stability and reliability during operation at high rotational speeds.
This configuration makes it possible to perform both roughing operations and finishing, engraving and precision machining tasks.
To provide the flexibility required in industrial production environments, HEXA features a 12-position automatic tool changer, with the option to expand to 24 positions depending on the configuration.
This allows different tools and machining operations to be combined within a single machining programme, reducing manual intervention and downtime between operations.
The machine is also equipped with the MITSUBISHI M80W numerical control system, which provides precise management of machine movements and the various machining parameters.
The system is complemented by a BLUM Z-NANO automatic tool measuring system and an automatic lubrication system, both of which help optimise machine operation and ensure consistent production performance.
The combination of precision, speed, stability and material versatility makes HEXA a particularly attractive solution for a wide range of industrial sectors.
Machining of panels, interior components, moulds, fixtures, housings and technical parts made from aluminium, plastics and composite materials.
Manufacturing of lightweight components, sheets, panels and technical parts made from aluminium and composite materials, where dimensional accuracy and machining quality are critical factors.
Milling, drilling, engraving and trimming of control panels, electronic equipment front panels, housings, connection panels and control components.
Cutting, engraving and machining of methacrylate, acrylics, engineering plastics and other materials used to manufacture signs, displays, exhibition stands and visual communication elements.
Manufacturing of embossing dies, marking tools, engraved plates, stamping components and machined parts made from aluminium or brass.
Machining of small moulds, models, fixtures and prototypes made from aluminium, resins, engineering plastics and composite materials.
Manufacturing of customised parts, industrial components, housings, sheets, panels and complex geometries using materials such as PMMA, PVC, PETG, polycarbonate, glass fibre and carbon fibre.
With HEXA, BERMAQ adds a new high-speed CNC milling solution to its product range, combining linear motor technology, structural rigidity and machining versatility in a compact, fully enclosed design.
A machine specifically developed for companies looking to increase precision, optimise production times and expand their manufacturing capabilities without requiring large amounts of factory floor space.
Direct Drive technology on the X and Y axes is its main distinguishing feature, bringing a new level of speed, acceleration and precision to CNC machining of non-ferrous metals, engineering plastics and composite materials.
HEXA is BERMAQ’s latest innovation, taking high-speed, high-precision CNC machining to a new level of productivity.
Would you like to explore everything HEXA has to offer? Contact BERMAQ’s technical team to find out which configuration best suits your production requirements.
