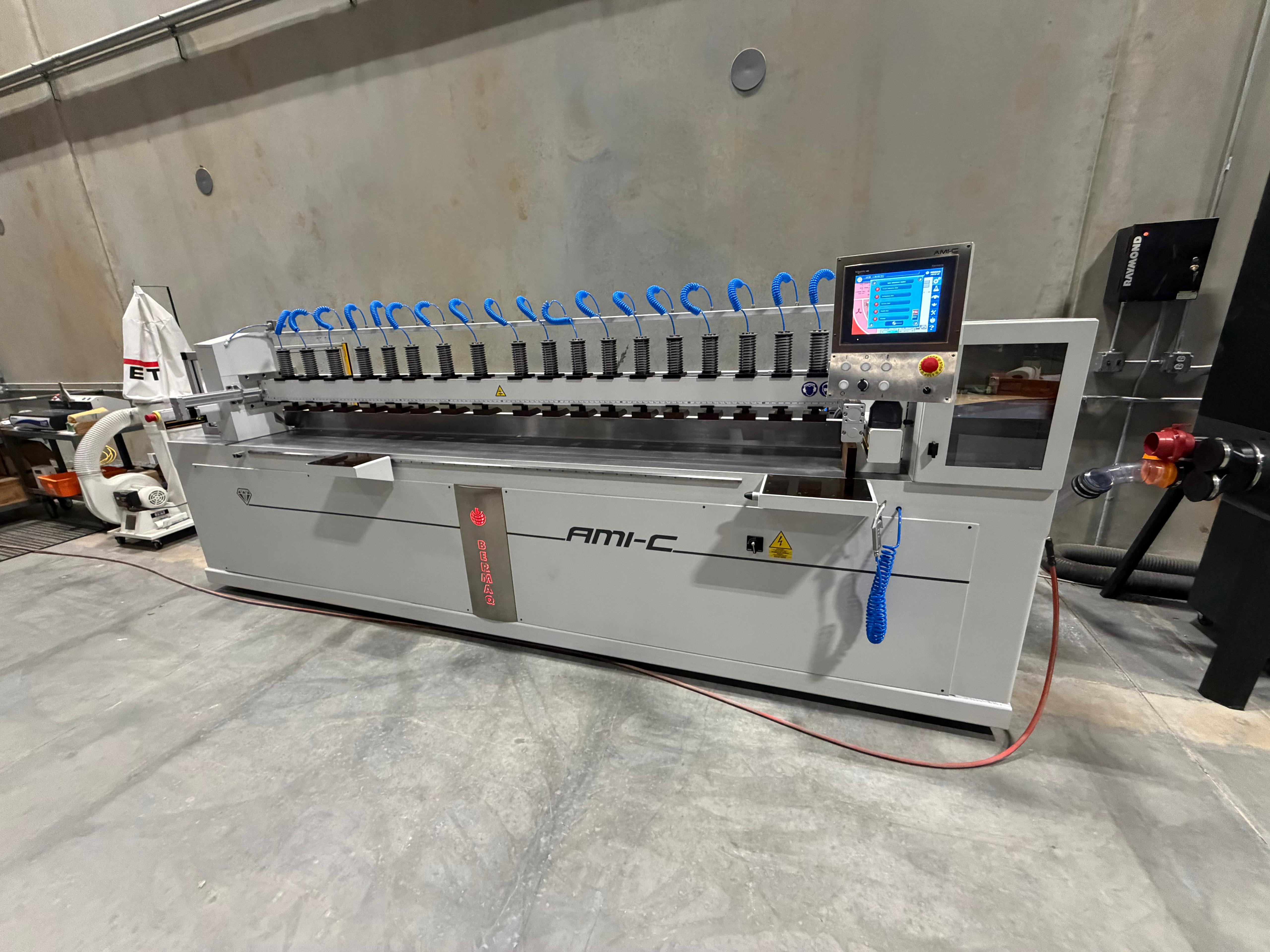

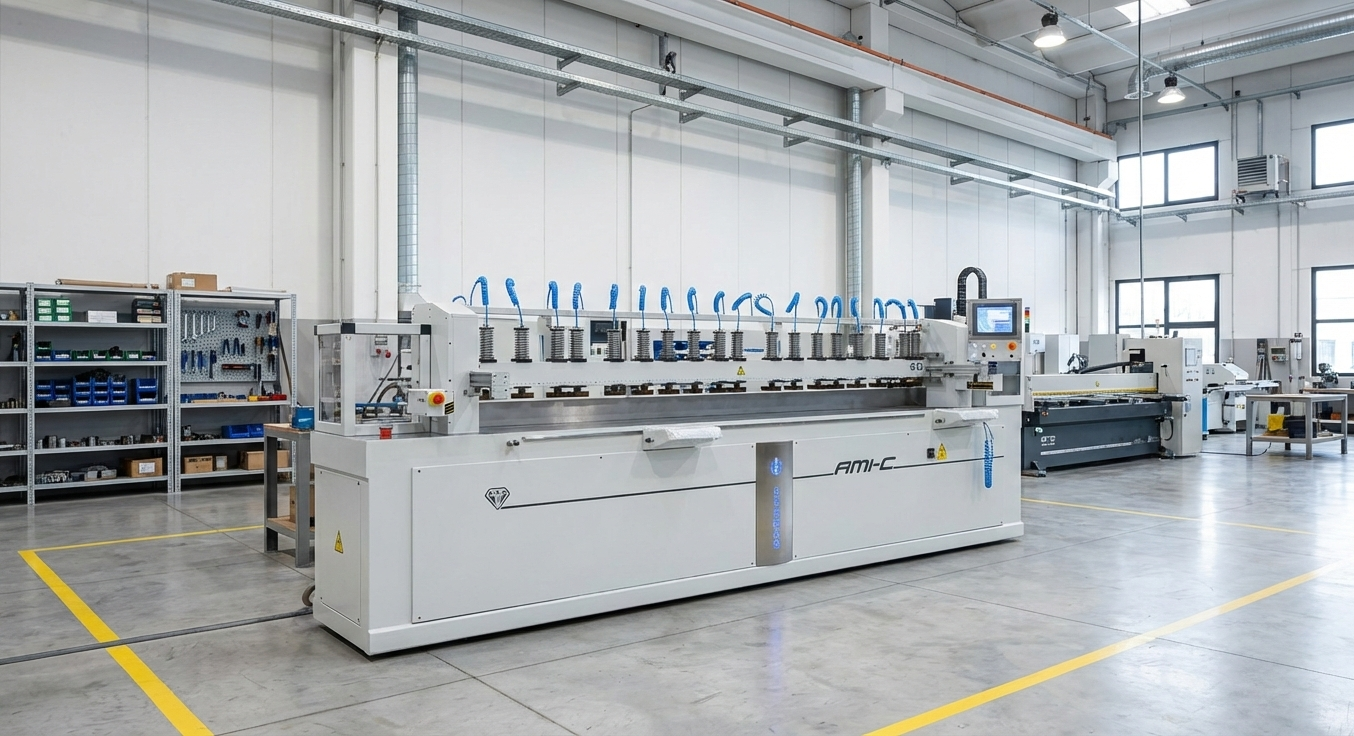

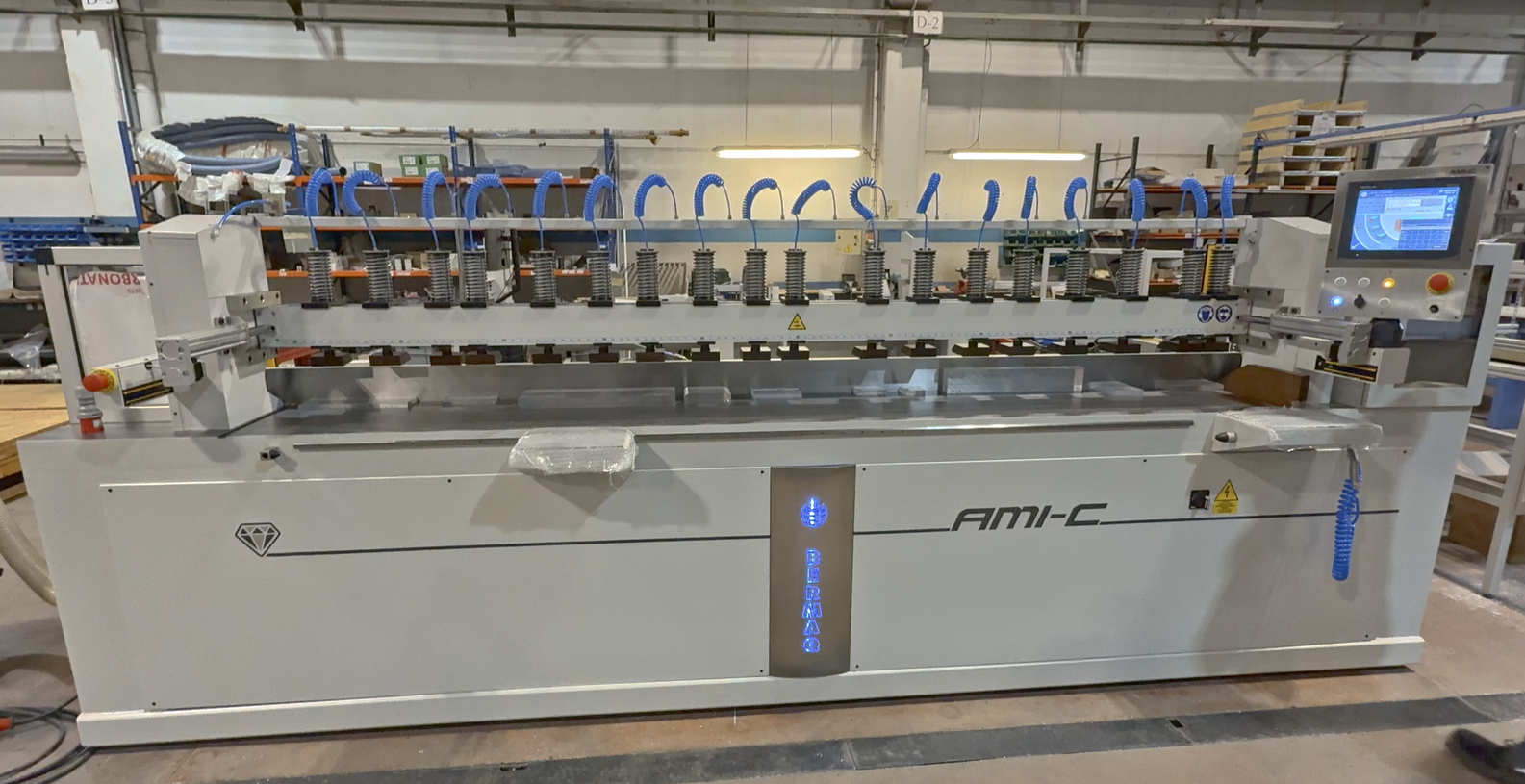

AMI-C Diamond Edge Polisher

Detailed description:

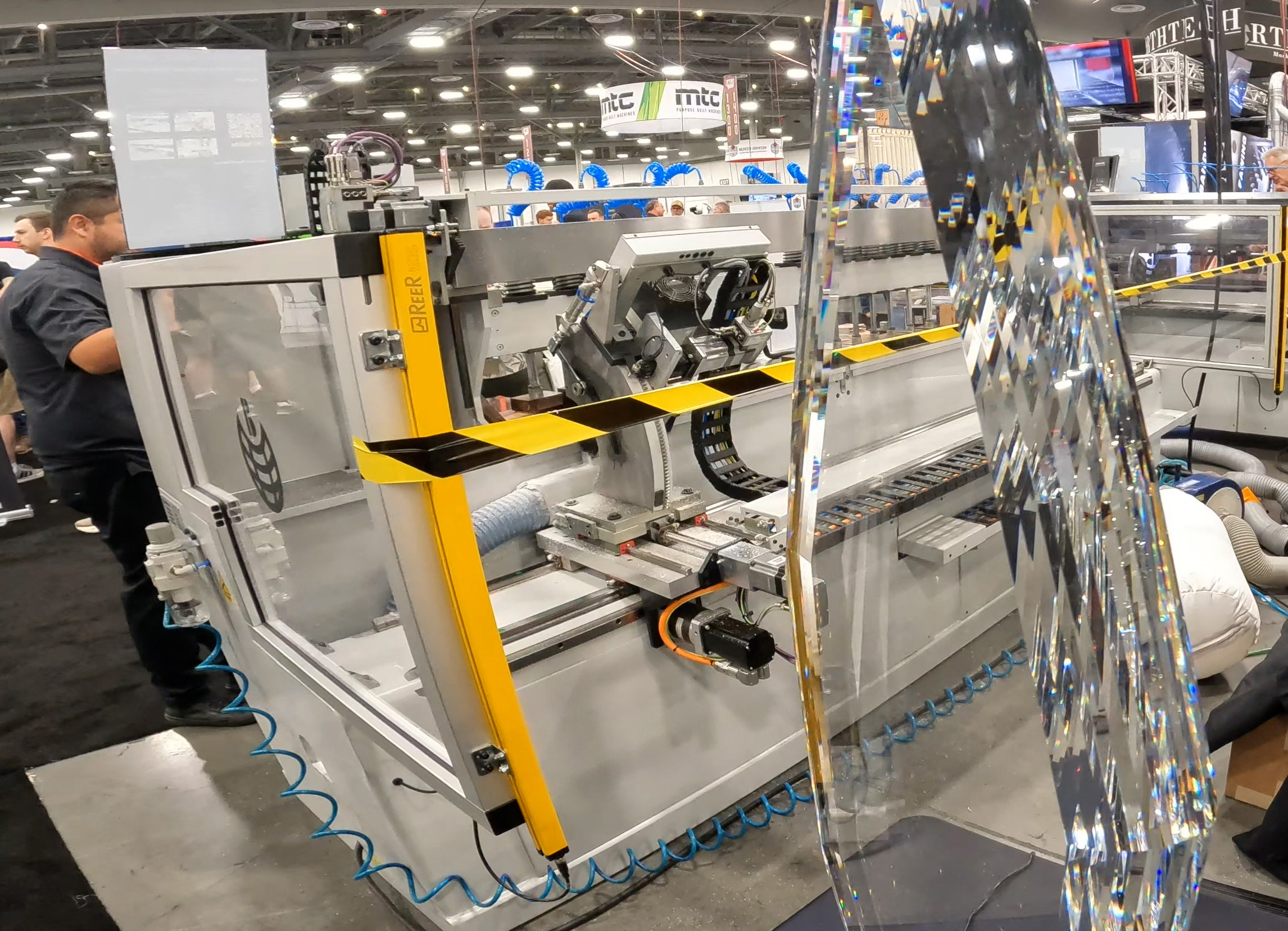

First fully automated polishing machine in the market. Specially designed for polishing methacrylate (PMMA) and acrylics with a perfect high quality finish. The new AMI-C includes a tilting screen and other optionals. It will increase productivity by piling the pieces up. Its head can be positioned to obtain bevels up to 60º lean.

The standard equipment of the machine is designed to make the job easier and faster, getting an excellent quality. Moreover, its optional, makes AMI-C adjustable to the needs of each client machine, finding the balance between price and functionality.

Technical specifications:

  • Working length: 2100 or 3100 mm
  • Maximum thickness: 120 mm
  • Maximum depth: 4 mm
  • RPM milling: 6600 / 12000 rpm
  • Milling speed: 0 – 5 m / min
  • Load speed: 0 – 20 m / min
  • Air pressure: 6 bar
  • Suction diameter: 80 mm

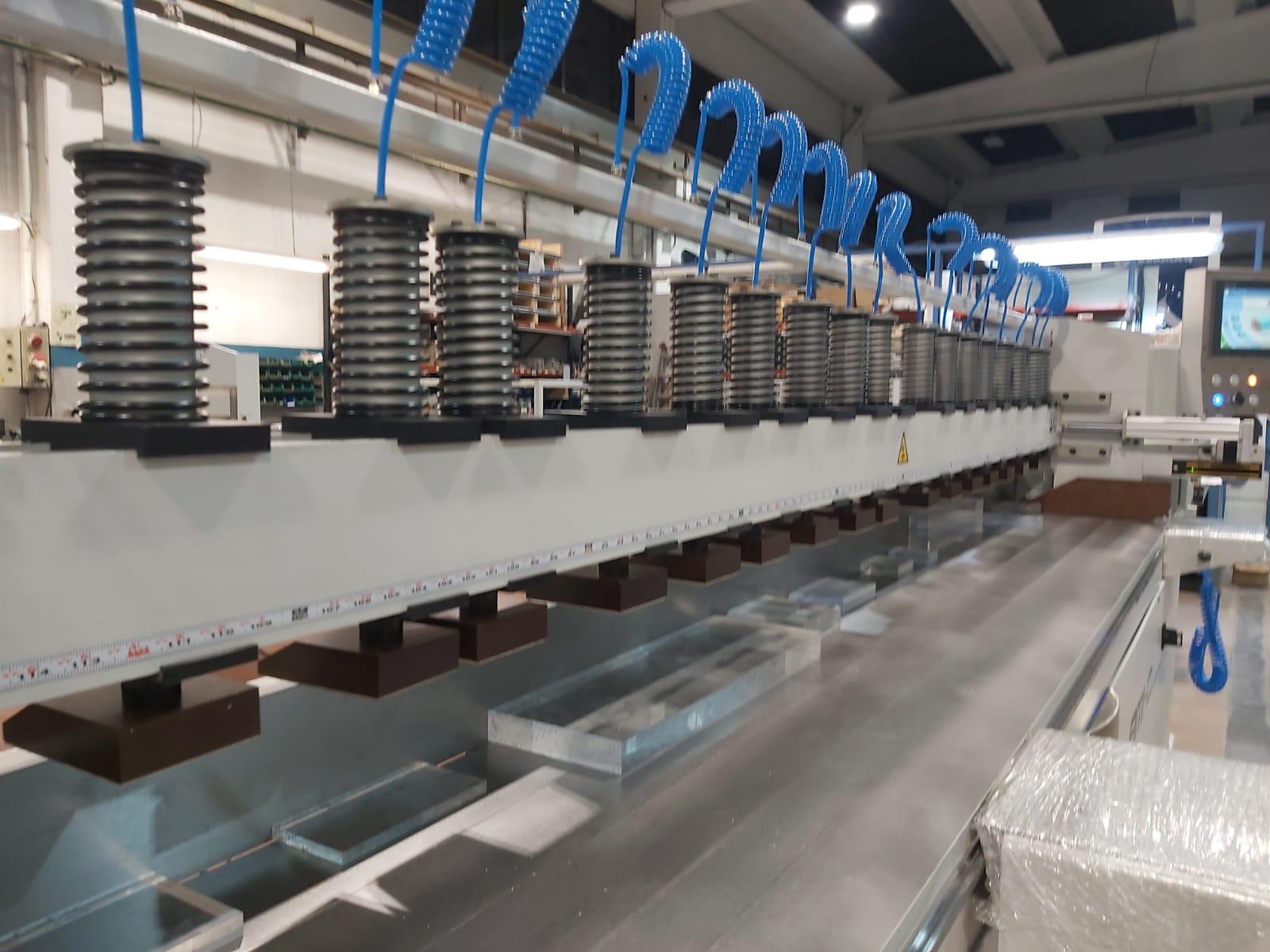

  • Number of clamps: std 5 / std 7 units
  • Weight: 1,950 / 2,150 kg
  • Milling angle range: from –5º to +60º
  • Installed power: 8,5 kW
  • Precision depth electronically adjustable: +/- 0,05 mm
  • High precision guide
  • Tool cabinet
  • Structural steel caucus stabilized
  • Support table
  • 4-housing polishing disk of interchangeable tools
  • PCD tool for the pre-cutting pass (black)
  • PCD tool for the transparent finishing (red)
  • Counterweights for 4-housing polishing disk

Applications:

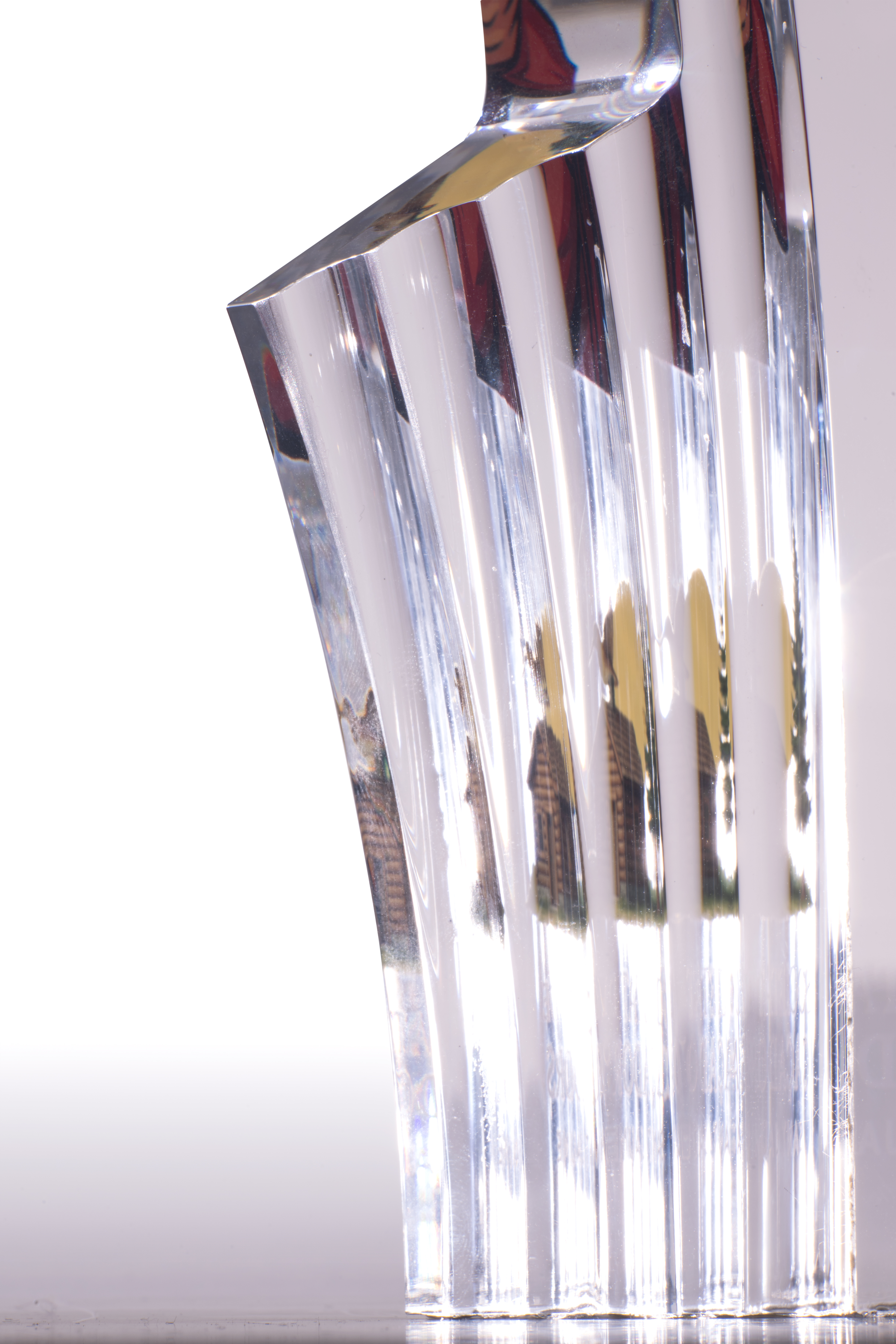

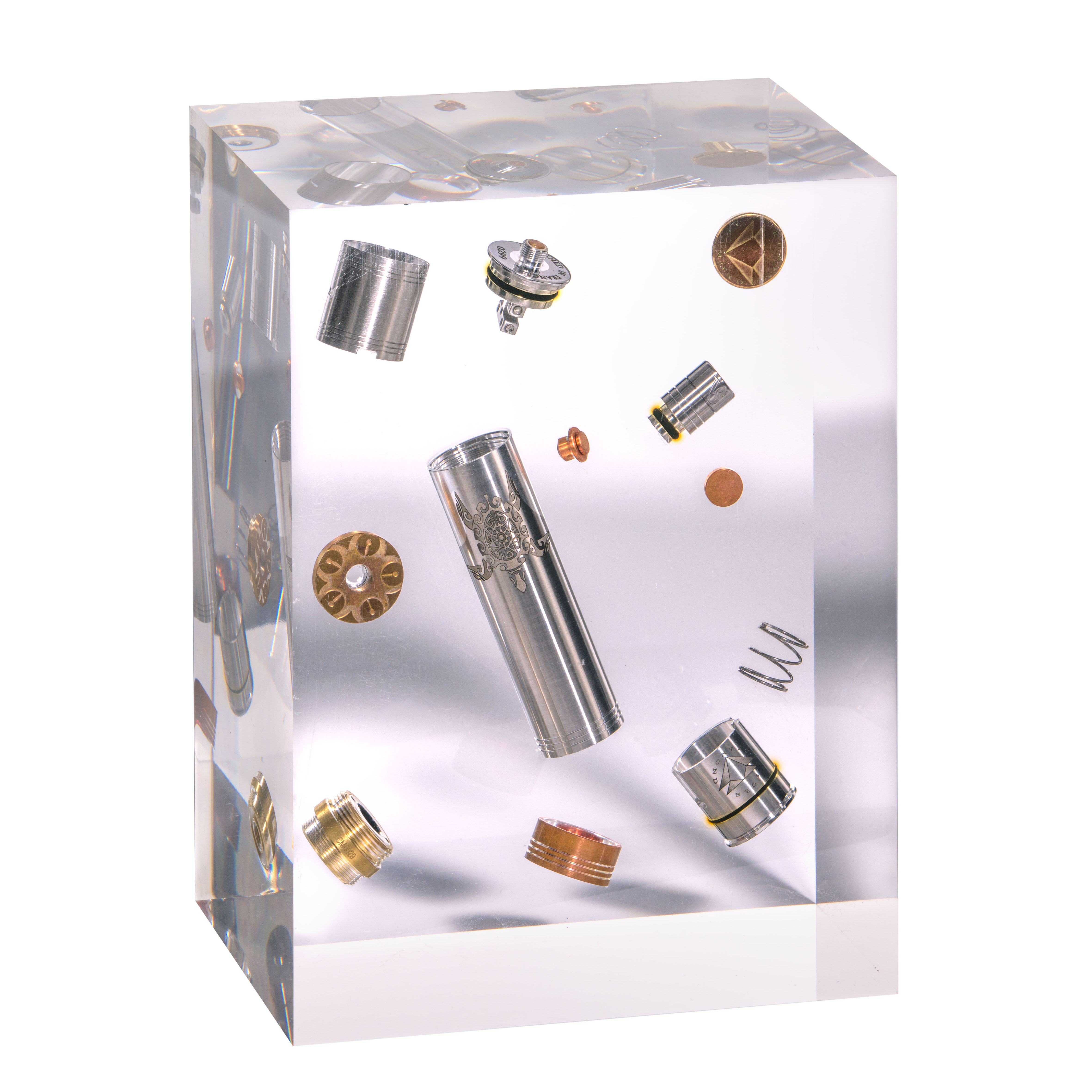

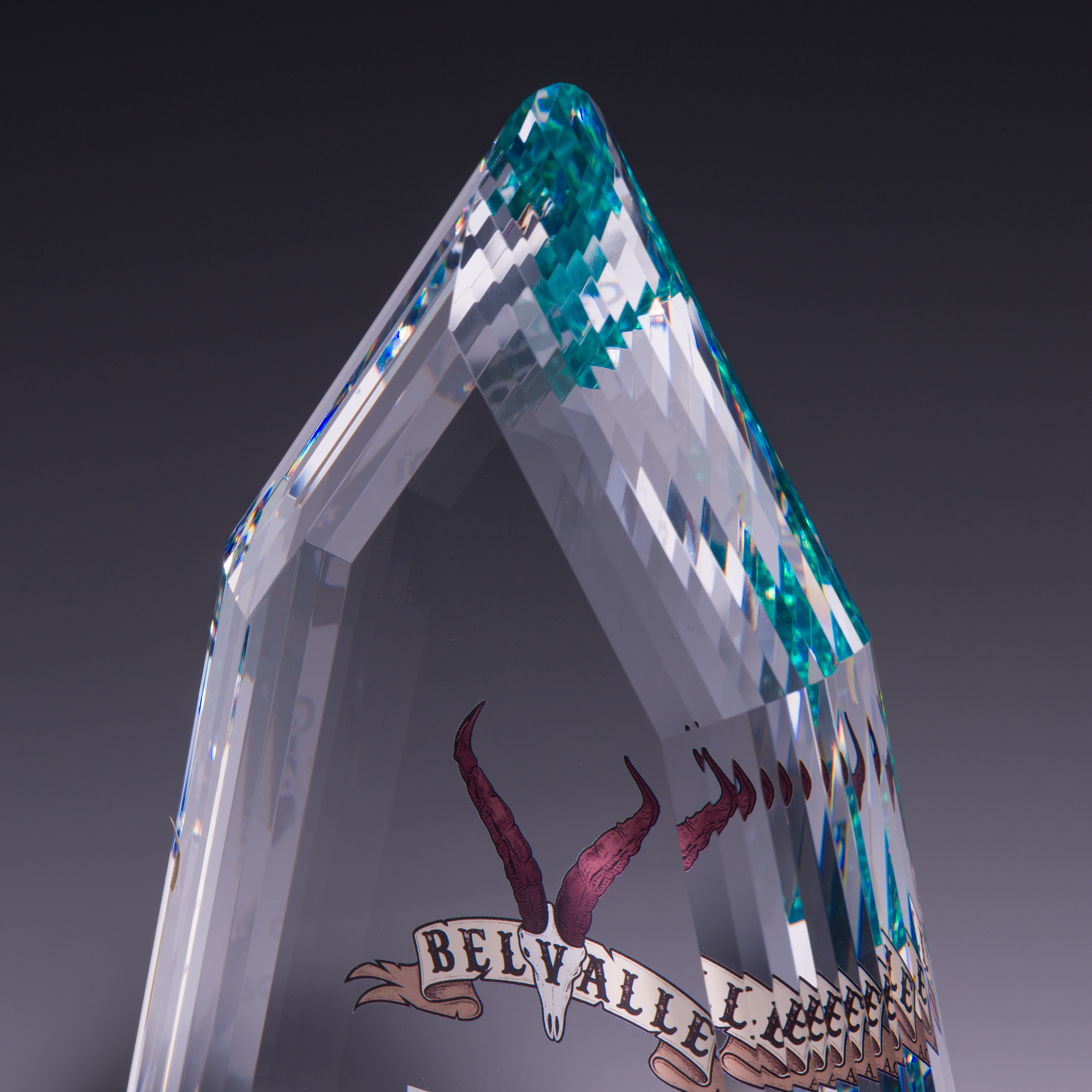

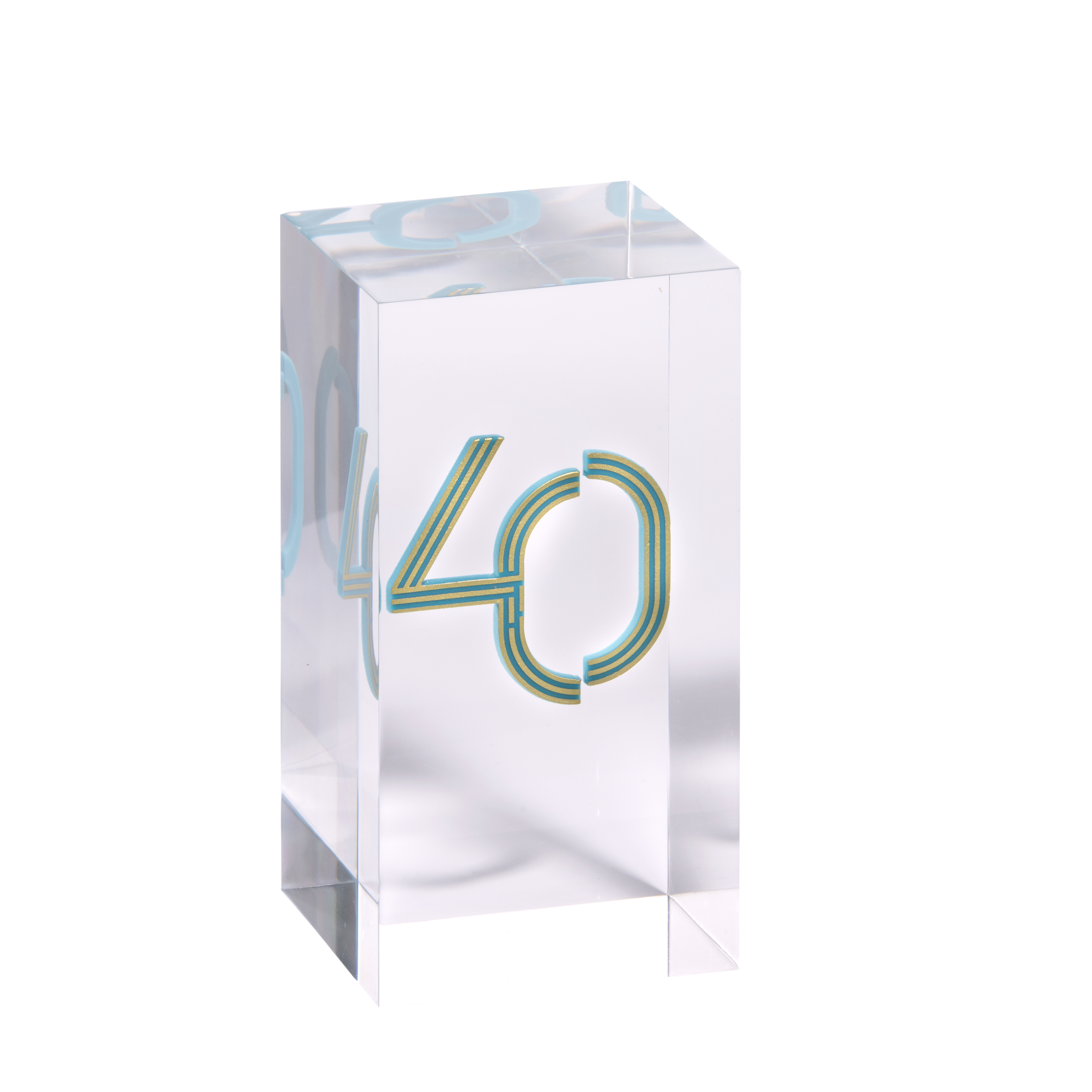

  • Methacrylate display stand polishing
  • Methacrylate decoration elements
  • Stand elements
  • Gifts and jewellery
